MAX77540AAWV+ _ Voltage Regulators - DC DC Switching Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	MAX77540AAWV+
Manufacturer	Maxim Integrated / Analog Devices
Other Part Numbers	505-MAX77540AAWV+-ND 505-MAX77540AAWV+ 175-MAX77540AAWV+-ND 175-MAX77540AAWV+
Description	IC REG BUCK ADJ 3A/3A DL 30WLP
Detailed Description	Buck Switching Regulator IC Positive Adjustable 0.5V 2 Output 3A, 3A 30-WFBGA, WLBGA
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - DC DC Switching Regulators
Manufacturer		Maxim Integrated / Analog Devices
Series
Packaging		Strip
Part Status		Active

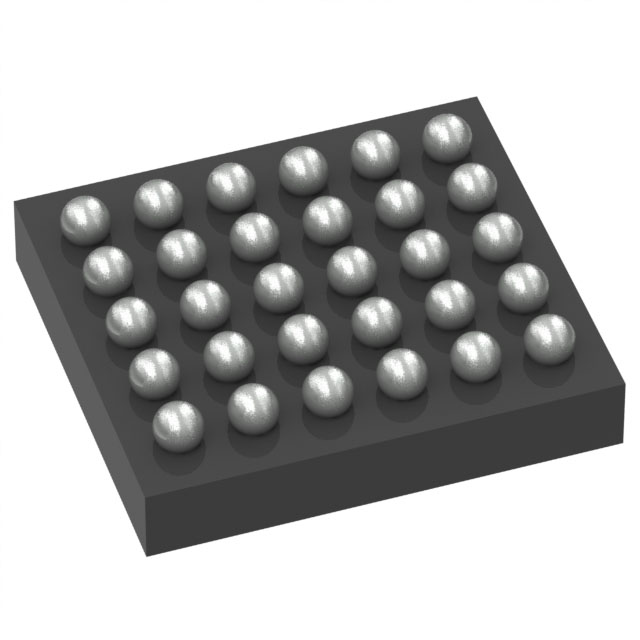

Package / Case		30-WFBGA, WLBGA
Output Type		Adjustable
Mounting Type		Surface Mount
Number of Outputs		2
Function		Step-Down
Current - Output		3A, 3A
Operating Temperature		-40°C ~ 125°C (TJ)
Output Configuration		Positive
Frequency - Switching		500kHz, 1MHz, 1.6MHz
Voltage - Input (Max)		16V
Topology		Buck
Supplier Device Package		30-WLP (2.51x2.31)
Synchronous Rectifier		No
Voltage - Output (Max)		5.2V
Voltage - Input (Min)		4V
Voltage - Output (Min/Fixed)		0.5V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
