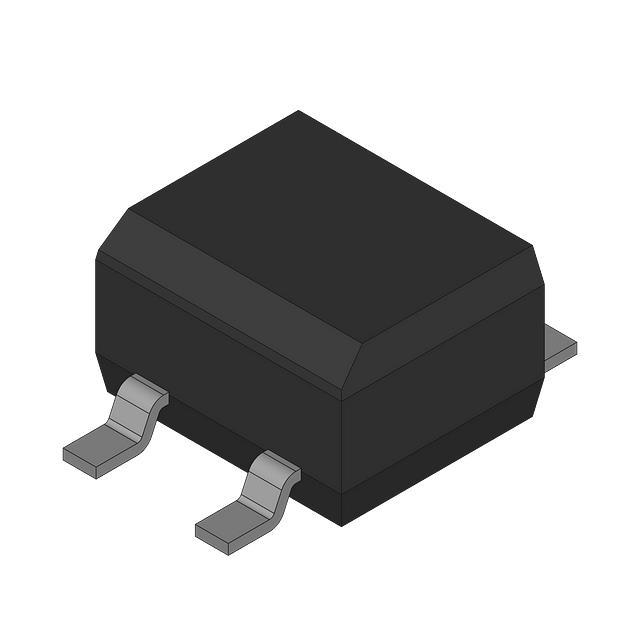

MB8S

Part Number
MB8S
Manufacturer Fairchild Semiconductor
Other Part Numbers
2156-MB8S-ND
2156-MB8S
FAIFSCMB8S
Description BRIDGE RECTIFIER DIODE, 1 PHASE,
Detailed Description Bridge Rectifier Single Phase Standard 800 V Surface Mount TO-269AA MINIDIL SLIM

Product Attributes

Category
Manufacturer Fairchild Semiconductor
Series
Packaging
Bulk
Part Status Active
Package / Case TO-269AA, 4-BESOP
Mounting Type Surface Mount
Diode Type Single Phase
Operating Temperature -50°C ~ 150°C (TJ)
Technology Standard
Supplier Device Package TO-269AA MINIDIL SLIM
Voltage - Peak Reverse (Max) 800 V
Current - Average Rectified (Io) 500 mA
Voltage - Forward (Vf) (Max) @ If 1 V @ 400 mA
Current - Reverse Leakage @ Vr 5 µA @ 800 V

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0080
