MC34063ABD _ Voltage Regulators - DC DC Switching Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	MC34063ABD
Manufacturer	STMicroelectronics
Other Part Numbers	MC34063ABD-ND
Description	IC REG BUCK BST ADJ 1.5A 8SOIC
Detailed Description	Buck, Boost Switching Regulator IC Positive or Negative Adjustable 1.25V 1 Output 1.5A (Switch) 8-SOIC (0.154", 3.90mm Width)
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - DC DC Switching Regulators
Manufacturer		STMicroelectronics
Series
Packaging		Tube
Part Status		Obsolete

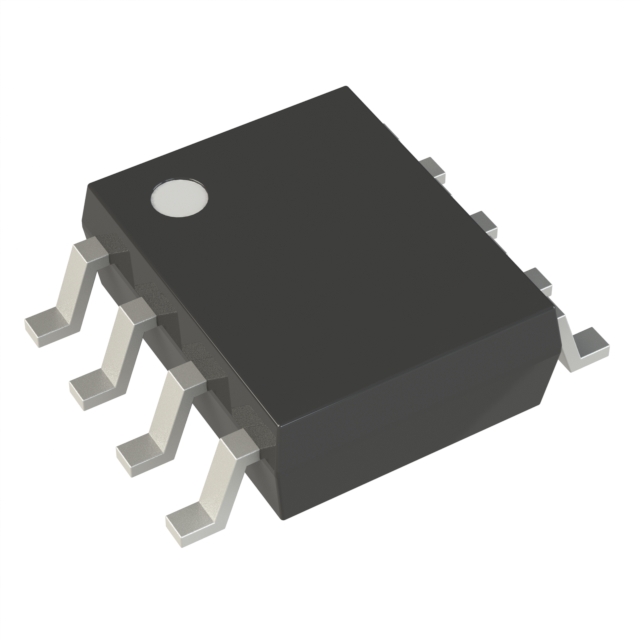

Package / Case		8-SOIC (0.154", 3.90mm Width)
Output Type		Adjustable
Mounting Type		Surface Mount
Number of Outputs		1
Function		Step-Up, Step-Down
Current - Output		1.5A (Switch)
Operating Temperature		-40°C ~ 85°C (TA)
Output Configuration		Positive or Negative
Frequency - Switching		33kHz
Voltage - Input (Max)		40V
Topology		Buck, Boost
Supplier Device Package		8-SOIC
Synchronous Rectifier		No
Voltage - Output (Max)		38V
Voltage - Input (Min)		3V
Voltage - Output (Min/Fixed)		1.25V

RESOURCE TYPE		LINK
Datasheets		MC34063ABD

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
