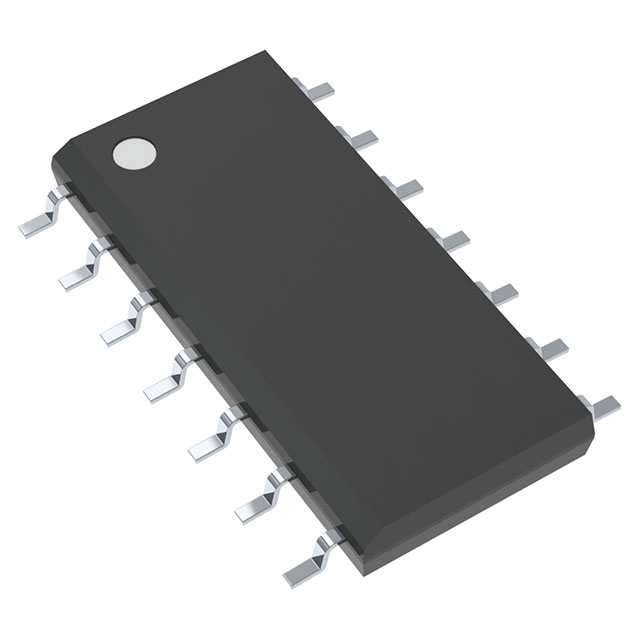

MC74HCU04ADR2G

MC74HCU04ADR2G

Part Number	MC74HCU04ADR2G
Manufacturer	Sanyo Semiconductor/onsemi
Other Part Numbers	MC74HCU04ADR2GOSTR-ND MC74HCU04ADR2GOSCT-ND MC74HCU04ADR2GOSDKR-ND MC74HCU04ADR2GOS-ND MC74HCU04ADR2GOS 2156-MC74HCU04ADR2G-OS MC74HCU04ADR2GOSDKR MC74HCU04ADR2GOSTR ONSONSMC74HCU04ADR2G MC74HCU04ADR2GOSCT
Description	IC INVERTER 6CH 1-INP 14SOIC
Detailed Description	Inverter IC 6 Channel 14-SOIC
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Logic Gates and Inverters
Manufacturer		Sanyo Semiconductor/onsemi
Series		74HCU
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		14-SOIC (0.154", 3.90mm Width)
Mounting Type		Surface Mount
Logic Type		Inverter
Operating Temperature		-55°C ~ 125°C
Voltage - Supply		2V ~ 6V
Current - Output High, Low		5.2mA, 5.2mA
Number of Inputs		1
Supplier Device Package		14-SOIC
Input Logic Level - High		1.7V ~ 4.8V
Input Logic Level - Low		0.3V ~ 1.1V
Max Propagation Delay @ V, Max CL		12ns @ 6V, 50pF
Number of Circuits		6
Current - Quiescent (Max)		1 µA

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MC74HCU04ADR2G
Datasheets		Material Declaration MC74HCU04ADR2G
Datasheets		onsemi REACH
Datasheets		onsemi RoHS
Datasheets		Mult Dev 15/Nov/2023

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Available To Order

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Cut Tape (CT)	1	$0.52	$0.52
Total Amount: $0.52

Tape & Reel (TR)

QUANTITY	UNIT PRICE	EXT PRICE
2,500	$0.17	$425.00
5,000	$0.16	$800.00
12,500	$0.15	$1,875.00
25,000	$0.15	$3,750.00
62,500	$0.15	$9,375.00

Cut Tape (CT)

QUANTITY	UNIT PRICE	EXT PRICE
1	$0.52	$0.52
10	$0.44	$4.40
25	$0.41	$10.25
100	$0.31	$31.00
250	$0.26	$65.00
500	$0.25	$125.00
1,000	$0.18	$180.00
