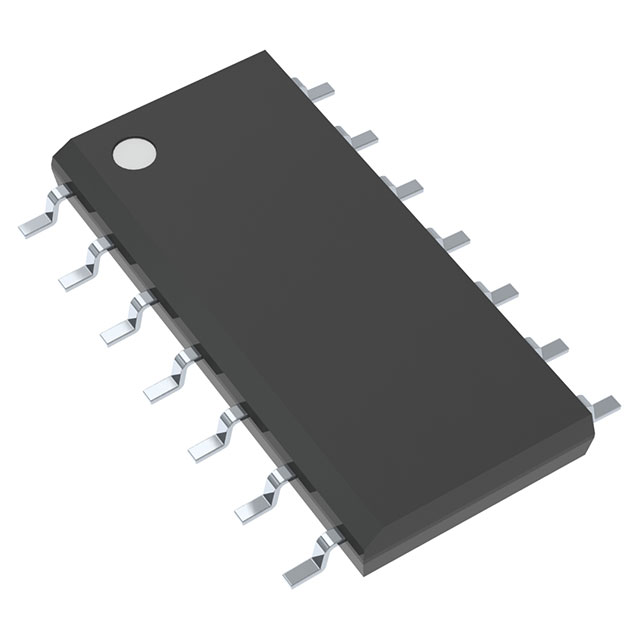

MC74LCX04DG

MC74LCX04DG

Part Number	MC74LCX04DG
Manufacturer	Sanyo Semiconductor/onsemi
Other Part Numbers	MC74LCX04DGOS-ND 2156-MC74LCX04DG-OS ONSONSMC74LCX04DG MC74LCX04DGOS
Description	IC INVERTER 6CH 1-INP 14SOIC
Detailed Description	Inverter IC 6 Channel 14-SOIC
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Logic Gates and Inverters
Manufacturer		Sanyo Semiconductor/onsemi
Series		74LCX
Packaging		Tube
Part Status		Active
Package / Case		14-SOIC (0.154", 3.90mm Width)
Mounting Type		Surface Mount
Logic Type		Inverter
Operating Temperature		-55°C ~ 125°C
Voltage - Supply		2V ~ 3.6V
Current - Output High, Low		24mA, 24mA
Number of Inputs		1
Supplier Device Package		14-SOIC
Input Logic Level - High		1.7V ~ 2V
Input Logic Level - Low		0.7V ~ 0.8V
Max Propagation Delay @ V, Max CL		5.2ns @ 3.3V, 50pF
Number of Circuits		6
Current - Quiescent (Max)		10 µA

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MC74LCX04DG
Datasheets		onsemi RoHS
Datasheets		Material Declaration MC74LCX04DG

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1431

Can ship immediately.
