Part Number | MC7905ACT |
---|---|
Manufacturer | Sanyo Semiconductor/onsemi |
Other Part Numbers | MC7905ACTOS-ND MC7905ACTOS MC7905ACTFS MC7905ACTFSINACTIVE MC7905ACTFS-ND |
Description | IC REG LINEAR -5V 1A TO220AB |
Detailed Description | Linear Voltage Regulator IC Negative Fixed 1 Output 1A TO-220 |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Sanyo Semiconductor/onsemi | |
Series | ||
Packaging | Tube | |
Part Status | Obsolete | |

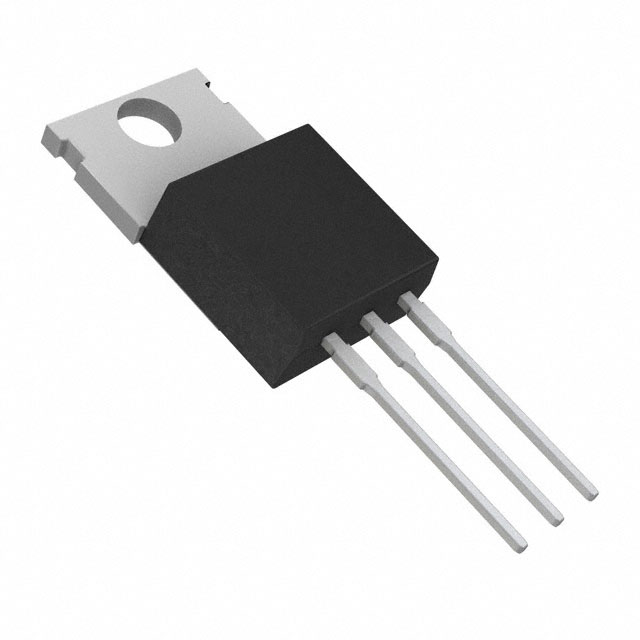

Package / Case | TO-220-3 | |
Output Type | Fixed | |
Mounting Type | Through Hole | |
Current - Output | 1A | |
Operating Temperature | 0°C ~ 125°C | |
Output Configuration | Negative | |
Voltage - Input (Max) | -35V | |
Number of Regulators | 1 | |
Supplier Device Package | TO-220 | |
Voltage - Output (Min/Fixed) | -5V | |
PSRR | 70dB (120Hz) | |
Voltage Dropout (Max) | 1.3V @ 1A (Typ) | |
Protection Features | Over Current, Over Temperature |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | MC7905ACT | |
Datasheets | onsemi RoHS | |
Datasheets | onsemi REACH | |
Datasheets | Multiple Devices 27/Jun/2007 | |
Datasheets | TO220B03 Pkg Drawing |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8542.39.0001 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | RoHS non-compliant |
