MC908AP16ACFBER _ Microcontrollers_Embedded_Integrated Circuits (ICs)

Part Number	MC908AP16ACFBER
Manufacturer	NXP Semiconductors
Other Part Numbers	MC908AP16ACFBER-ND 935313475528 2832-MC908AP16ACFBER
Description	IC MCU 8BIT 16KB FLASH 44QFP
Detailed Description	HC08 HC08 Microcontroller IC 8-Bit 8MHz 16KB (16K x 8) FLASH 44-QFP (10x10)
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Embedded Microcontrollers
Manufacturer		NXP Semiconductors
Series		HC08
Packaging		Tape & Reel (TR)
Part Status		Not For New Designs

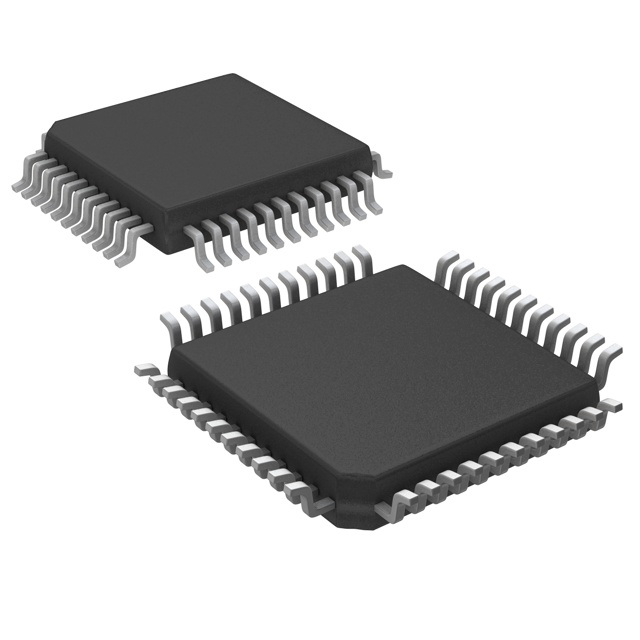

Package / Case		44-QFP
Mounting Type		Surface Mount
Speed		8MHz
Program Memory Size		16KB (16K x 8)
RAM Size		1K x 8
Operating Temperature		-40°C ~ 85°C (TA)
Oscillator Type		Internal
Program Memory Type		FLASH
Core Processor		HC08
Data Converters		A/D 8x10b
Core Size		8-Bit
Voltage - Supply (Vcc/Vdd)		4.5V ~ 5.5V
Connectivity		I2C, IRSCI, SCI, SPI
Peripherals		LED, LVD, POR, PWM
Supplier Device Package		44-QFP (10x10)
Number of I/O		32
DigiKey Programmable		Not Verified

RESOURCE TYPE		LINK
Datasheets		MC908AP16ACFBER
Datasheets		NXP USA Inc RoHS Cert
Datasheets		NXP USA Inc REACH
Datasheets		Mult Dev Site Chgs 18/Dec/2020
Datasheets		Automated Packing Implementation 05/Jul/2023
Datasheets		Mult Dev Pkg Seal 15/Dec/2020

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.31.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Not recommended for new design, minimums may apply.
