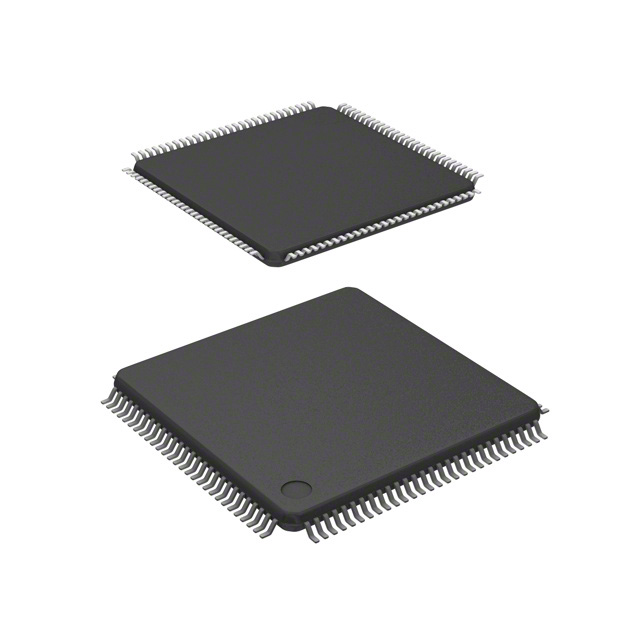

MC912DT128ACPVE

Part Number
MC912DT128ACPVE
Manufacturer NXP Semiconductors
Other Part Numbers
MC912DT128ACPVE-ND
935316594557
Description IC MCU 16BIT 128KB FLASH 112LQFP
Detailed Description CPU12 HC12 Microcontroller IC 16-Bit 8MHz 128KB (128K x 8) FLASH 112-LQFP (20x20)
Datasheet Datasheet

Product Attributes

Category
Manufacturer NXP Semiconductors
Series
HC12
Packaging
Tray
Part Status Not For New Designs
Package / Case 112-LQFP
Mounting Type Surface Mount
Speed 8MHz
Program Memory Size 128KB (128K x 8)
RAM Size 8K x 8
Operating Temperature -40°C ~ 85°C (TA)
Oscillator Type Internal
Program Memory Type FLASH
EEPROM Size 2K x 8
Core Processor CPU12
Data Converters A/D 16x8/10b
Core Size 16-Bit
Voltage - Supply (Vcc/Vdd) 4.5V ~ 5.5V
Connectivity CANbus, I2C, SCI, SPI
Peripherals POR, PWM, WDT
Supplier Device Package 112-LQFP (20x20)
Number of I/O 67
DigiKey Programmable Not Verified

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.31.0001
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Available To Order

Not recommended for new design, minimums may apply.
