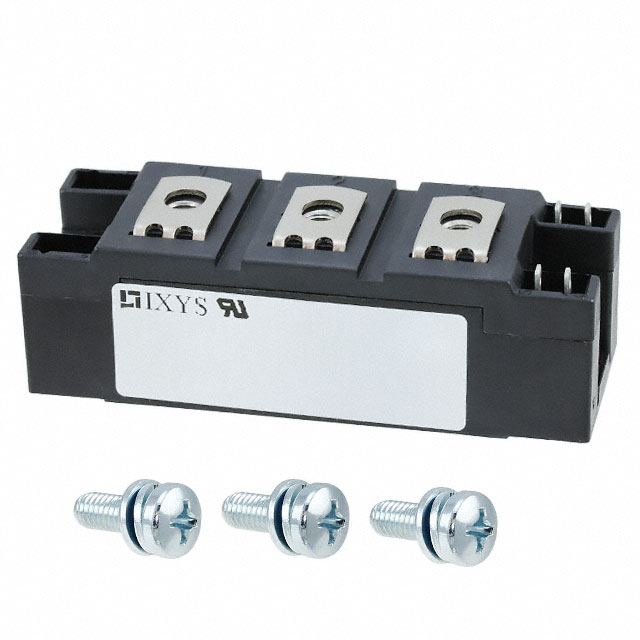

MCC161-20IO1

Part Number
MCC161-20IO1
Manufacturer Littelfuse / IXYS RF
Other Part Numbers
MCC161-20IO1-ND
Q3359423
Description SCR 175A 2000V
Detailed Description SCR Module 2 kV 300 A Series Connection - All SCRs Chassis Mount Y4-M6
Manufacturer Standard Lead Time 19 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Littelfuse / IXYS RF
Series
Packaging
Bulk
Part Status Active
Package / Case Y4-M6
Mounting Type Chassis Mount
Operating Temperature -40°C ~ 125°C (TJ)
Structure Series Connection - All SCRs
Current - Hold (Ih) (Max) 150 mA
Current - Gate Trigger (Igt) (Max) 150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 6000A, 6400A
Number of SCRs, Diodes 2 SCRs
Current - On State (It (AV)) (Max) 165 A
Voltage - Gate Trigger (Vgt) (Max) 2 V
Current - On State (It (RMS)) (Max) 300 A
Voltage - Off State 2 kV

Documents & Media

RESOURCE TYPE LINK
Datasheets SCR Module Selection Guide

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
California Prop 65 California Prop 65 Information
ECCN EAR99
HTSUS 8541.30.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 11

Can ship immediately.
