MCO600-16IO1

Part Number
MCO600-16IO1
Manufacturer Littelfuse / IXYS RF
Other Part Numbers
MCO600-16IO1-ND
Description MOD THYRISTOR SGL 1600V Y1-CU

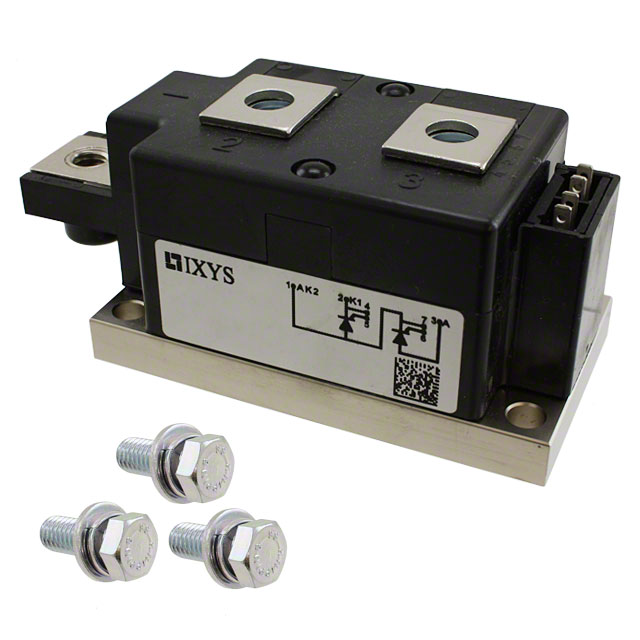

Detailed Description SCR Module 1.6 kV 928 A Single Chassis Mount Y1-CU
Manufacturer Standard Lead Time 14 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Littelfuse / IXYS RF
Series
Packaging
Box
Part Status Active
Package / Case Y1-CU
Mounting Type Chassis Mount
Operating Temperature -40°C ~ 140°C (TJ)
Structure Single
Current - Hold (Ih) (Max) 300 mA
Current - Gate Trigger (Igt) (Max) 300 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 15000A, 16000A
Number of SCRs, Diodes 1 SCR
Current - On State (It (AV)) (Max) 600 A
Voltage - Gate Trigger (Vgt) (Max) 2 V
Current - On State (It (RMS)) (Max) 928 A
Voltage - Off State 1.6 kV

Documents & Media

RESOURCE TYPE LINK
Datasheets MCO600-16IO1

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
California Prop 65 California Prop 65 Information
ECCN EAR99
HTSUS 8541.30.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
