MCP1725-5002E/SN _ Voltage Regulators - Linear, Low Drop Out (LDO) Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	MCP1725-5002E/SN
Manufacturer	Roving Networks (Microchip Technology)
Other Part Numbers	MCP1725-5002E/SN-ND
Description	IC REG LINEAR 5V 500MA 8SOIC
Detailed Description	Linear Voltage Regulator IC Positive Fixed 1 Output 500mA 8-SOIC
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Manufacturer		Roving Networks (Microchip Technology)
Series
Packaging		Tube
Part Status		Active

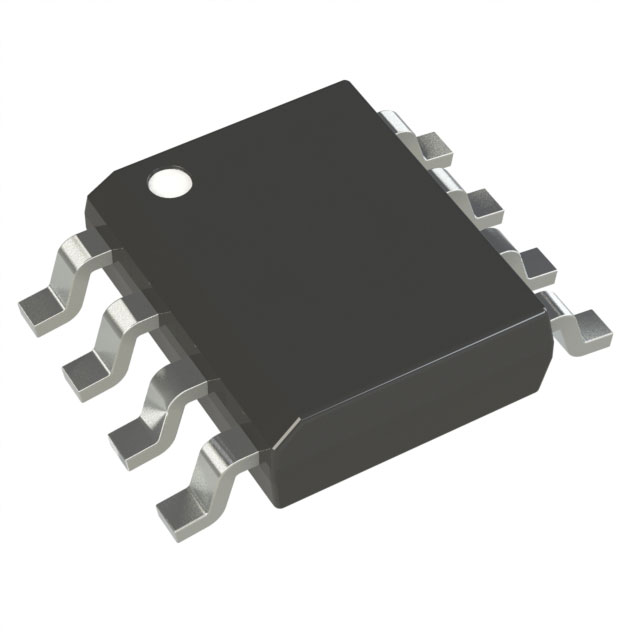

Package / Case		8-SOIC (0.154", 3.90mm Width)
Output Type		Fixed
Mounting Type		Surface Mount
Current - Output		500mA
Operating Temperature		-40°C ~ 125°C
Output Configuration		Positive
Current - Quiescent (Iq)		220 µA
Voltage - Input (Max)		6V
Number of Regulators		1
Supplier Device Package		8-SOIC
Voltage - Output (Min/Fixed)		5V
Control Features		Enable, Power Good
PSRR		60dB (100Hz)
Voltage Dropout (Max)		0.35V @ 500mA
Protection Features		Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)

RESOURCE TYPE		LINK
Datasheets		MCP1725-5002E/SN
Datasheets		Portable Power Conversion Design Guide
Datasheets		Microchip RoHS
Datasheets		Microchip REACH
Datasheets		Assembly Site Addition 08/Apr/2015
Datasheets		Packing Changes 10/Oct/2016
Datasheets		Label and Packing Changes 23/Sep/2015

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
