MCP1726-0802E/SN _ Voltage Regulators - Linear, Low Drop Out (LDO) Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	MCP1726-0802E/SN
Manufacturer	Roving Networks (Microchip Technology)
Other Part Numbers	MCP1726-0802E/SN-ND
Description	IC REG LINEAR 0.8V 1A 8SOIC
Detailed Description	Linear Voltage Regulator IC Positive Fixed 1 Output 1A 8-SOIC
Manufacturer Standard Lead Time	5 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Manufacturer		Roving Networks (Microchip Technology)
Series
Packaging		Tube
Part Status		Active

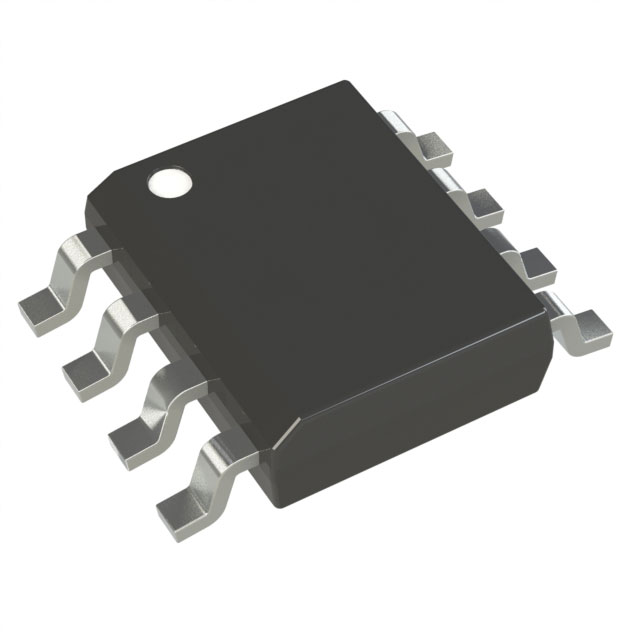

Package / Case		8-SOIC (0.154", 3.90mm Width)
Output Type		Fixed
Mounting Type		Surface Mount
Current - Output		1A
Operating Temperature		-40°C ~ 125°C
Output Configuration		Positive
Current - Quiescent (Iq)		220 µA
Voltage - Input (Max)		6V
Number of Regulators		1
Supplier Device Package		8-SOIC
Voltage - Output (Min/Fixed)		0.8V
Control Features		Enable, Power Good
PSRR		54dB (100Hz)
Voltage Dropout (Max)		0.5V @ 1A
Protection Features		Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)

RESOURCE TYPE		LINK
Datasheets		MCP1726 Product Brief
Datasheets		Portable Power Conversion Design Guide
Datasheets		Microchip RoHS
Datasheets		Microchip REACH

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
