MCP1825S-2502E/EB

MCP1825S-2502E/EB

Part Number	MCP1825S-2502E/EB
Manufacturer	Roving Networks (Microchip Technology)
Other Part Numbers	MCP1825S-2502E/EB-ND
Description	IC REG LINEAR 2.5V 500MA 3DDPAK
Detailed Description	Linear Voltage Regulator IC Positive Fixed 1 Output 500mA DDPAK-3
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Manufacturer		Roving Networks (Microchip Technology)
Series
Packaging		Tube
Part Status		Active

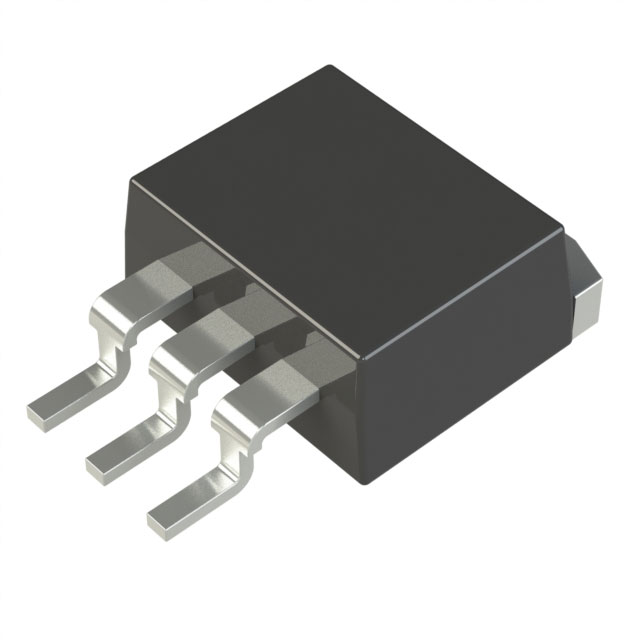

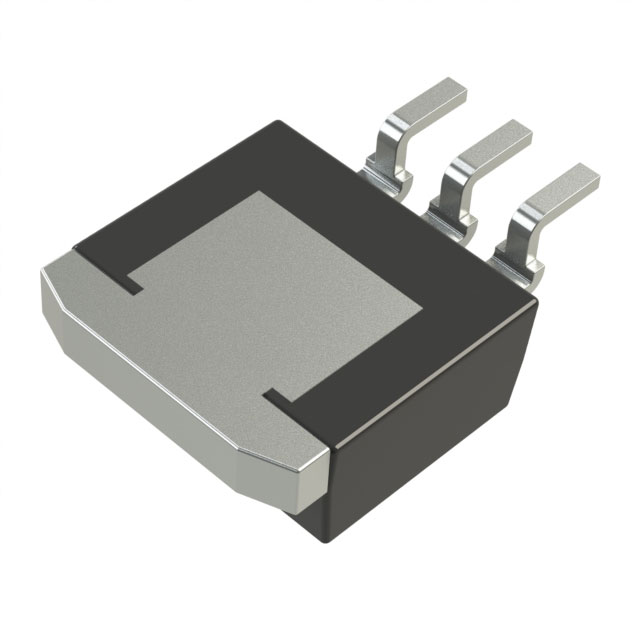

Package / Case		TO-263-4, D2PAK (3 Leads + Tab), TO-263AA
Output Type		Fixed
Mounting Type		Surface Mount
Current - Output		500mA
Operating Temperature		-40°C ~ 125°C
Output Configuration		Positive
Current - Quiescent (Iq)		220 µA
Voltage - Input (Max)		6V
Number of Regulators		1
Supplier Device Package		DDPAK-3
Voltage - Output (Min/Fixed)		2.5V
PSRR		60dB (100Hz)
Voltage Dropout (Max)		0.35V @ 500mA
Protection Features		Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MCP1825S-2502E/EB
Datasheets		Microchip RoHS
Datasheets		Microchip REACH

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 479

Can ship immediately.
