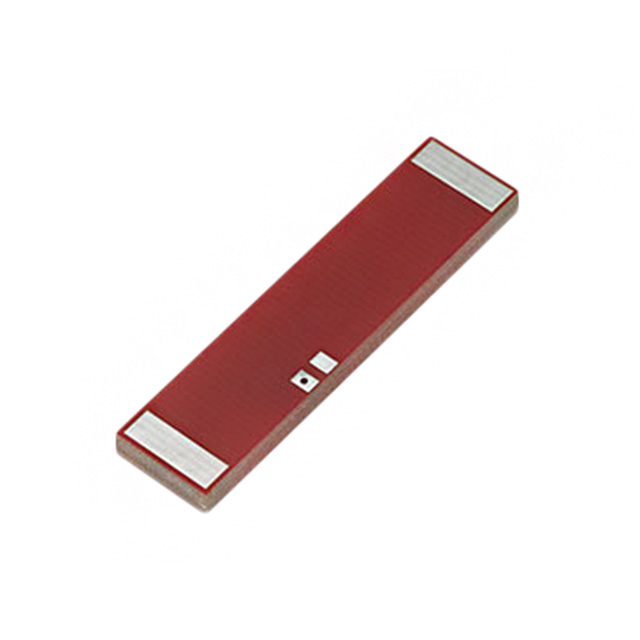

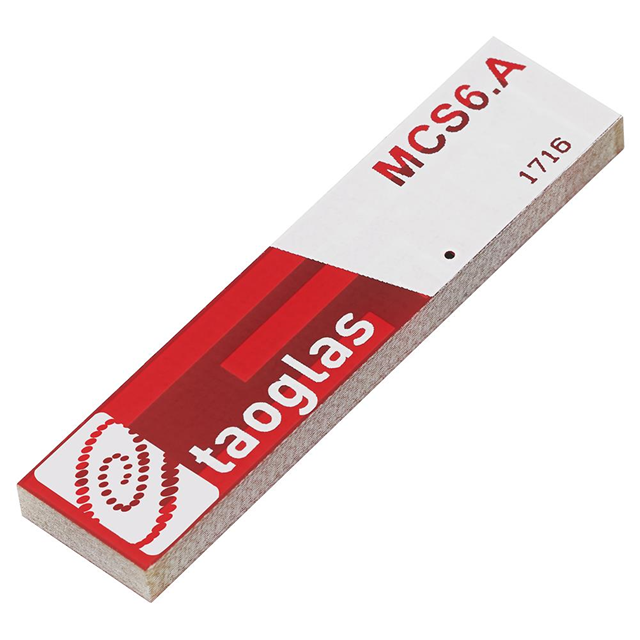

MCS6.A

MCS6.A

Part Number	MCS6.A
Manufacturer	Taoglas
Other Part Numbers	931-1507-2-ND 931-1507-1-ND 931-1507-6-ND 931-1507-6 931-1507-1 931-1507-2
Description	CAT M1 PENTA-BAND CELLULAR LOW P
Detailed Description	707.5MHz, 737.5MHz, 1.733GHz, 1.88GHz, 1.96GHz, 2.133GHz CDMA, EDGE, DCS, GPRS, GSM, HSDPA, PCS, UMTS, WCDMA Chip RF Antenna 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz -0.02dBi, -1.05dBi, 2.76dBi, 3.11dBi, 3.26dBi, 3.75dBi Solder Surface Mount
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Antennas
Manufacturer		Taoglas
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Mounting Type		Surface Mount
Frequency Range		698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz
Applications		CDMA, EDGE, DCS, GPRS, GSM, HSDPA, PCS, UMTS, WCDMA
Gain		-0.02dBi, -1.05dBi, 2.76dBi, 3.11dBi, 3.26dBi, 3.75dBi
Termination		Solder
Number of Bands		6
Antenna Type		Chip
Height (Max)		0.118" (3.00mm)
Return Loss		-10dB
Frequency Group		Wide Band
Frequency (Center/Band)		707.5MHz, 737.5MHz, 1.733GHz, 1.88GHz, 1.96GHz, 2.133GHz
RF Family/Standard		Cellular
Power - Max		5 W

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MCS6.A
Datasheets		Taoglas Limited RoHS
Datasheets		Label 25/May/2018

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8517.71.0000
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 5902

Can ship immediately.
