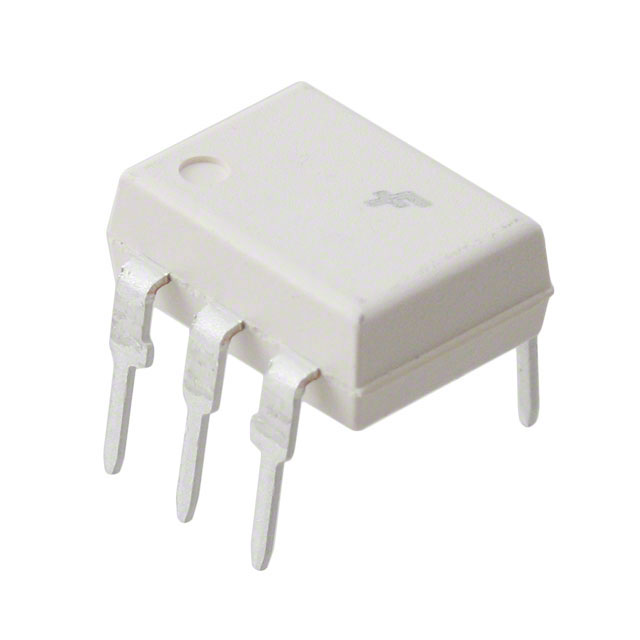

Part Number | MCT26 |
---|---|
Manufacturer | Sanyo Semiconductor/onsemi |
Other Part Numbers | MCT26QT-ND MCT26QT MCT26GI |
Description | TRANSISTOR OPTOISOLATOR |
Detailed Description | Optoisolator Transistor with Base Output 5300Vrms 1 Channel 6-DIP |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Sanyo Semiconductor/onsemi | |
Series | ||
Packaging | Tube | |
Part Status | Obsolete | |
Package / Case | 6-DIP (0.300", 7.62mm) | |
Output Type | Transistor with Base | |
Mounting Type | Through Hole | |
Input Type | DC | |
Current - Output / Channel | 50mA | |
Voltage - Isolation | 5300Vrms | |
Current Transfer Ratio (Min) | 6% @ 10mA | |
Vce Saturation (Max) | 400mV | |
Supplier Device Package | 6-DIP | |
Voltage - Output (Max) | 30V | |
Number of Channels | 1 |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | onsemi RoHS |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8541.49.8000 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected |
