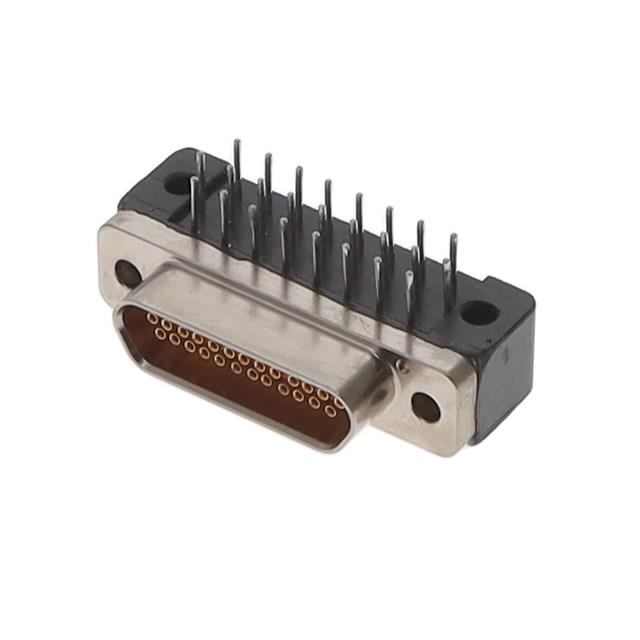

MDM-25SCBR-L56-A174-F222

Part Number
MDM-25SCBR-L56-A174-F222
Manufacturer VEAM (ITT Cannon)
Other Part Numbers
1003-MDM-25SCBR-L56-A174-F222-ND
1003-MDM-25SCBRL56-A174-F222-ND
MDM25SCBRL56A174F222
1003-MDM-25SCBR-L56-A174-F222
MDM-25SCBRL56-A174-F222
1003-MDM-25SCBRL56-A174-F222
096517-0912
Description MDM 25 S COND BOARD RIGHT HT
Detailed Description 25 Position D-Type, Micro-D Receptacle, Female Sockets Connector
Manufacturer Standard Lead Time 24 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer VEAM (ITT Cannon)
Series
83513-Style Micro D Metal Shell (MDM)
Packaging
Bulk
Part Status Active
Connector Type Receptacle, Female Sockets
Contact Finish Gold
Current Rating (Amps) 3A
Mounting Type Panel Mount, Through Hole, Right Angle
Number of Positions 25
Number of Rows 2
Operating Temperature -55°C ~ 200°C
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Wire Leads
Connector Style D-Type, Micro-D
Dielectric Material Liquid Crystal Polymer (LCP)
Shell Material, Finish Aluminum, Nickel Plated, Electroless
Contact Material Copper Alloy
Shell Size, Connector Layout 0.050 Pitch x 0.100 Row to Row
Primary Material Metal

Documents & Media

RESOURCE TYPE LINK
Datasheets MDM-25SCBR-L56-A174-F222

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.69.4040
Moisture Sensitivity Level (MSL) Not Applicable
RoHS Status ROHS3 Compliant

In Stock: 25

Can ship immediately.
