Part Number |
MDM-9PCBRM7-A174
|
---|---|
Manufacturer | VEAM (ITT Cannon) |
Other Part Numbers |
1003-MDM-9PCBRM7-A174-ND
096510-0917
MDM-9PCBRM7-A174-ND
MDM9PCBRM7A174
1003-MDM-9PCBRM7-A174
|
Description | MICRO 9 M PC R/A JACKP A174 |

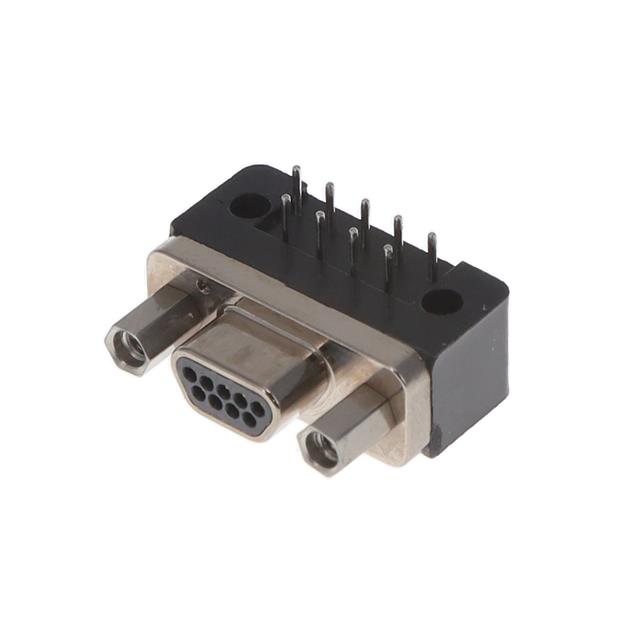

Detailed Description | 9 Position D-Type, Micro-D Plug, Male Pins Connector |
Manufacturer Standard Lead Time | 30 weeks |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | VEAM (ITT Cannon) | |
Series |
83513-Style Micro D Metal Shell (MDM)
|
|
Packaging |
Bulk
|
|
Part Status | Active | |
Connector Type | Plug, Male Pins | |
Contact Finish | Gold | |
Current Rating (Amps) | 3A | |
Mounting Type | Through Hole, Right Angle | |
Number of Positions | 9 | |
Number of Rows | 2 | |
Contact Type | Signal | |
Flange Feature | Mating Side, Female Screwlock (2-56) | |
Termination | Solder | |
Connector Style | D-Type, Micro-D | |
Shell Material, Finish | Aluminum Alloy, Nickel Plated, Electroless | |
Shell Size, Connector Layout | 0.050 Pitch x 0.043 Row to Row | |
Backset Spacing | 0.230" (5.84mm) | |
Primary Material | Metal |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | MDM-9PCBRM7-A174 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8536.69.4040 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH info available upon request | |
RoHS Status | ROHS3 Compliant |
