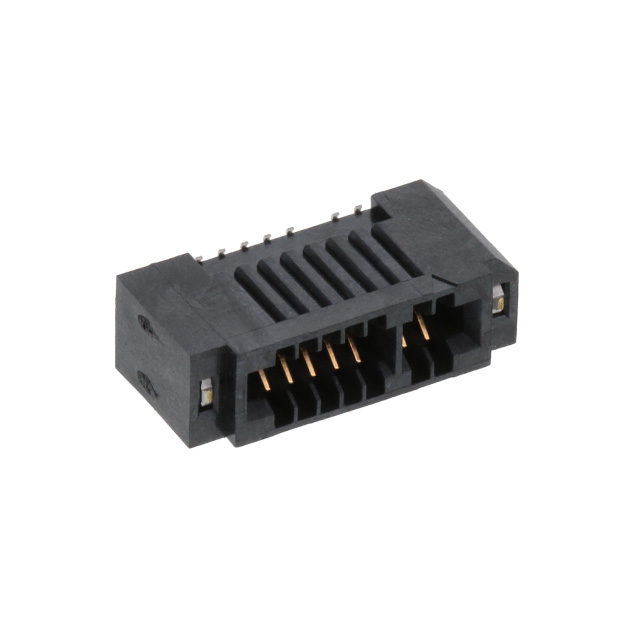

MECF-08-01-L-DV-WT _ Edgeboard Connectors_Card Edge Connectors_Connectors, Interconnects

Part Number	MECF-08-01-L-DV-WT
Manufacturer	Samtec, Inc.
Other Part Numbers	612-MECF-08-01-L-DV-WT-ND 612-MECF-08-01-L-DV-WT MECF-08-01-L-DV-WT-ND
Description	CONN EDGE DUAL FMALE 16POS 0.05
Detailed Description	16 Position Female Connector Non Specified - Dual Edge Gold 0.050" (1.27mm) Black
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Card Edge Connectors Edgeboard Connectors
Manufacturer		Samtec, Inc.
Series		MECF
Packaging		Tube
Part Status		Active
Features		Board Guide
Gender		Female
Contact Finish		Gold
Color		Black
Mounting Type		Surface Mount
Number of Positions		16
Pitch		0.050" (1.27mm)
Operating Temperature		-55°C ~ 125°C
Read Out		Dual
Contact Type		Cantilever
Card Type		Non Specified - Dual Edge
Card Thickness		0.062" (1.57mm)
Termination		Solder
Contact Finish Thickness		10.0µin (0.25µm)
Material - Insulation		Liquid Crystal Polymer (LCP)
Contact Material		Beryllium Copper
Number of Rows		2

RESOURCE TYPE		LINK
Datasheets		MECF-08-01-L-DV-WT

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Tube	1	$7.56	$7.56
Total Amount: $7.56
