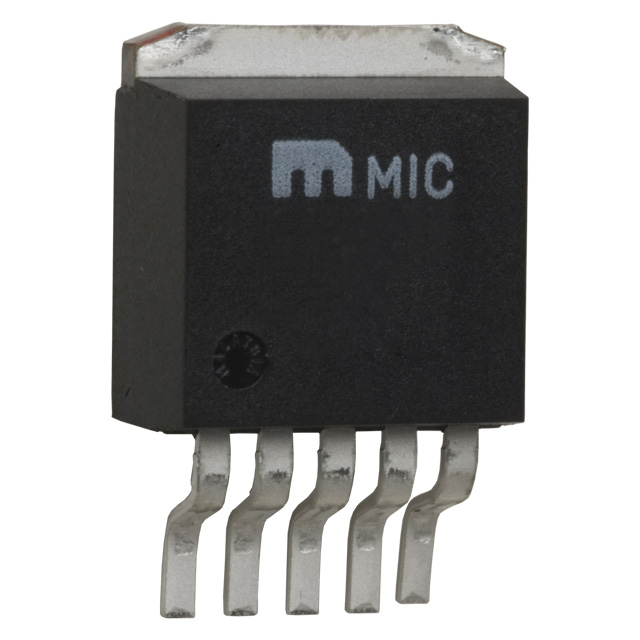

MIC39301-2.5WU-TR

MIC39301-2.5WU-TR

Part Number	MIC39301-2.5WU-TR
Manufacturer	Roving Networks (Microchip Technology)
Other Part Numbers	MIC39301-2.5WU-TR-ND MIC39301-2.5WU-CT-ND MIC39301-2.5WU-DKR-ND MIC39301-2.5WU TR MIC39301-2.5WU-CT MIC39301-2.5WU TR-ND MIC39301-2.5WU-DKR MIC39301-2.5WUTR-ND MIC39301-2.5WUTR
Description	IC REG LINEAR 2.5V 3A TO263-5
Detailed Description	Linear Voltage Regulator IC Positive Fixed 1 Output 3A TO-263-5
Manufacturer Standard Lead Time	7 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Manufacturer		Roving Networks (Microchip Technology)
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		TO-263-6, D2PAK (5 Leads + Tab), TO-263BA
Output Type		Fixed
Mounting Type		Surface Mount
Current - Output		3A
Operating Temperature		-40°C ~ 125°C
Output Configuration		Positive
Voltage - Input (Max)		16V
Number of Regulators		1
Supplier Device Package		TO-263-5
Voltage - Output (Min/Fixed)		2.5V
Control Features		Enable
Voltage Dropout (Max)		0.55V @ 3A
Protection Features		Over Current, Over Temperature, Reverse Polarity

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MIC39301-2.5WU-TR
Datasheets		Microchip RoHS
Datasheets		Microchip REACH
Datasheets		MIC39300/01/02 Datasheet 14/Feb/2024
Datasheets		MIC39300/39301/39302 05/May/2018
Datasheets		Micrel to Microchip 30/Nov/2016
Datasheets		MBB/Label Chgs 16/Nov/2018
Datasheets		Micrel to Microchip PN Changes 7/Oct/2015

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 219

Can ship immediately.
