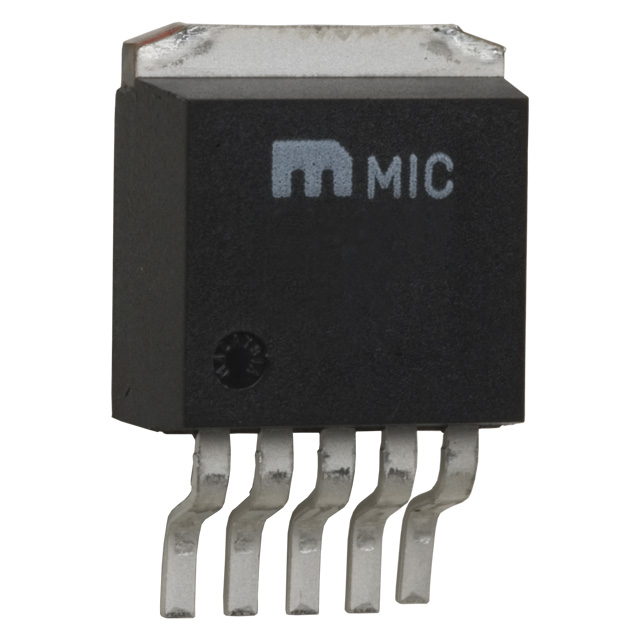

MIC39302WU

MIC39302WU

Part Number	MIC39302WU
Manufacturer	Roving Networks (Microchip Technology)
Other Part Numbers	576-4074-ND MIC39302WU-ND 576-4074
Description	IC REG LINEAR POS ADJ 3A TO263-5
Detailed Description	Linear Voltage Regulator IC Positive Adjustable 1 Output 3A TO-263-5
Manufacturer Standard Lead Time	7 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Manufacturer		Roving Networks (Microchip Technology)
Series
Packaging		Tube
Part Status		Active
Package / Case		TO-263-6, D2PAK (5 Leads + Tab), TO-263BA
Output Type		Adjustable
Mounting Type		Surface Mount
Current - Output		3A
Operating Temperature		-40°C ~ 125°C
Output Configuration		Positive
Voltage - Input (Max)		16V
Number of Regulators		1
Supplier Device Package		TO-263-5
Voltage - Output (Max)		15.5V
Voltage - Output (Min/Fixed)		1.24V
Control Features		Enable
Voltage Dropout (Max)		0.55V @ 3A
Protection Features		Over Current, Over Temperature, Reverse Polarity

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MIC39302WU
Datasheets		Microchip REACH
Datasheets		Microchip RoHS
Datasheets		MIC39300/01/02 Datasheet 14/Feb/2024
Datasheets		MIC39300/39301/39302 05/May/2018
Datasheets		Qualification Production Site 23/May/2014
Datasheets		MBB/Label Chgs 16/Nov/2018

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 91

Can ship immediately.
