MIC5309-1.2YD6-TR

MIC5309-1.2YD6-TR

Part Number	MIC5309-1.2YD6-TR
Manufacturer	Roving Networks (Microchip Technology)
Other Part Numbers	576-3002-2-ND 576-3002-1-ND 576-3002-6-ND 1611-MIC5309-1.2YD6-DKR-ND 576-3002-6 1611-MIC5309-1.2YD6-DKRINACTIVE MIC530912YD6TR 1611-MIC5309-1.2YD6-DKR MIC5309-1.2YD6 TR 1611-MIC5309-1.2YD6-CT 576-3002-1 576-3002-2
Description	IC REG LIN 1.2V 300MA TSOT23-6
Detailed Description	Linear Voltage Regulator IC Positive Fixed 1 Output 300mA TSOT-23-6
Manufacturer Standard Lead Time	17 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Manufacturer		Roving Networks (Microchip Technology)
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

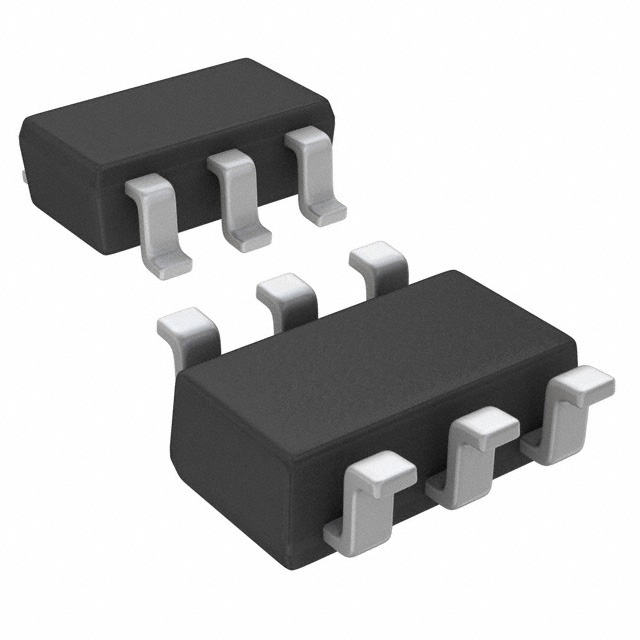

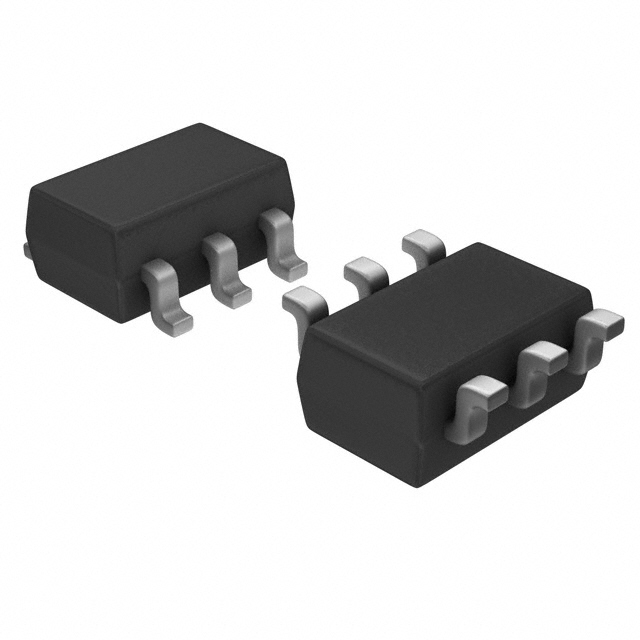

Package / Case		SOT-23-6 Thin, TSOT-23-6
Output Type		Fixed
Mounting Type		Surface Mount
Current - Output		300mA
Operating Temperature		-40°C ~ 125°C
Output Configuration		Positive
Voltage - Input (Max)		5.5V
Number of Regulators		1
Supplier Device Package		TSOT-23-6
Voltage - Output (Min/Fixed)		1.2V
Control Features		Enable
PSRR		90dB ~ 70dB (1kHz)
Voltage Dropout (Max)		0.2V @ 300mA
Protection Features		Over Current, Over Temperature

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MIC5309-1.2YD6-TR
Datasheets		Microchip RoHS
Datasheets		Microchip REACH
Datasheets		Micrel to Microchip PN Changes 7/Oct/2015

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 7143

Can ship immediately.
