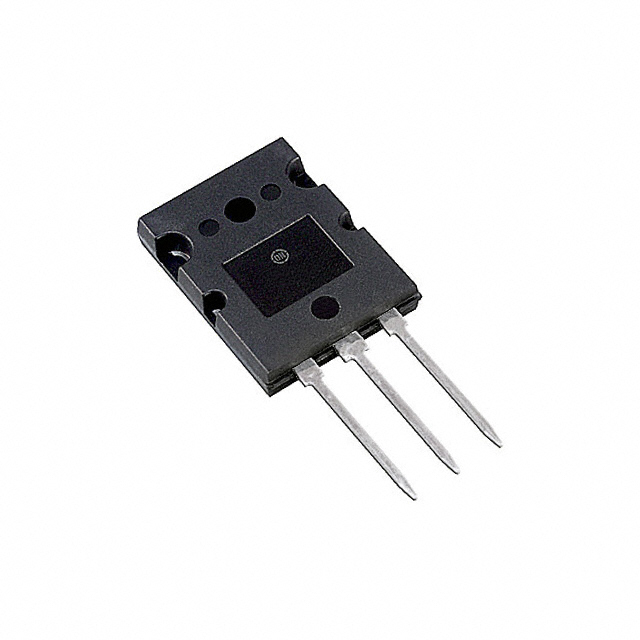

MJL4302AG

Part Number
MJL4302AG
Manufacturer Sanyo Semiconductor/onsemi
Other Part Numbers
MJL4302AGOS-ND
MJL4302AGOS
Description TRANS PNP 350V 15A TO264
Detailed Description Bipolar (BJT) Transistor PNP 350 V 15 A 35MHz 230 W Through Hole TO-264
Manufacturer Standard Lead Time 14 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Sanyo Semiconductor/onsemi
Series
Packaging
Tube
Part Status Active
Package / Case TO-264-3, TO-264AA
Mounting Type Through Hole
Transistor Type PNP
Operating Temperature -65°C ~ 150°C (TJ)
Vce Saturation (Max) @ Ib, Ic 1V @ 800mA, 8A
Current - Collector Cutoff (Max) 100µA
DC Current Gain (hFE) (Min) @ Ic, Vce 80 @ 5A, 5V
Frequency - Transition 35MHz
Supplier Device Package TO-264
Current - Collector (Ic) (Max) 15 A
Voltage - Collector Emitter Breakdown (Max) 350 V
Power - Max 230 W

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.29.0075
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 174

Can ship immediately.
