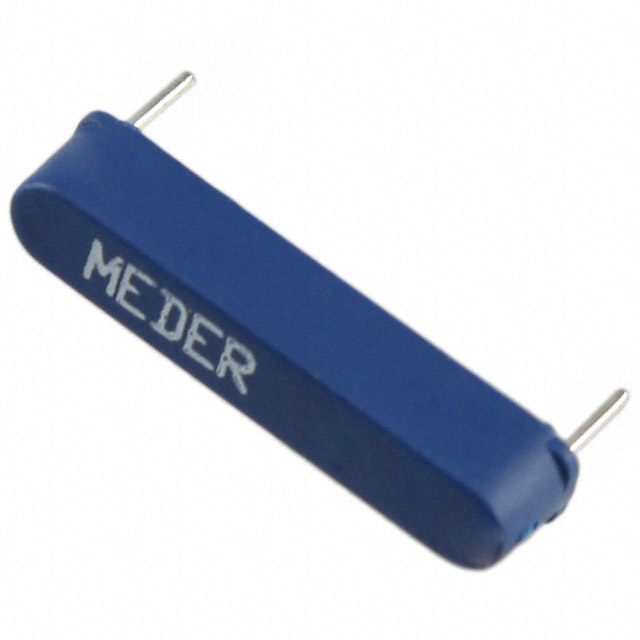

MK06-5-B _ Magnetic, Reed Switches_Switches

Part Number	MK06-5-B
Manufacturer	Standex Electronics
Other Part Numbers	374-1260-ND 2206050001 374-1032 374-1260 374-1032-ND MK65B MK6-5-B MK065B
Description	SWITCH REED SPST-NO 400MA 200V
Detailed Description	Molded Body Reed Switch SPST-NO 10 ~ 15AT Operate Range 10W 400mA (AC/DC) 200 V Through Hole
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Category		Switches Magnetic, Reed Switches
Manufacturer		Standex Electronics
Series		MK06
Packaging		Bulk
Part Status		Active
Mounting Type		Through Hole
Circuit		SPST-NO
Type		Molded Body Reed
Operating Temperature		-20°C ~ 85°C
Termination Style		PC Pin
Length - Overall		0.563" (14.30mm)
Power - Rated		10W
Height Above Board		0.126" (3.20mm)
Current - Switching		400mA (AC/DC)
Voltage - Switching DC		200 V
Operate Time		0.6 ms
Release Time		0.05 ms
Size - Body		0.563" L x 0.110" W x 0.126" H (14.30mm x 2.80mm x 3.20mm)
Operate Range		10 ~ 15AT
Current - Carry		500mA (AC/DC)
Voltage - Switching AC		200 V
Capacitance		0.2 pF

RESOURCE TYPE		LINK
Datasheets		MK06-5-B Spec Sheet

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9065
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
