Part Number | MLX90364LVS-ADD-303-SP |
---|---|
Manufacturer | Melexis |
Other Part Numbers | 413-MLX90364LVS-ADD-303-SP-ND 413-MLX90364LVS-ADD-303-SP |
Description | SENSR ROTRY/LNEAR ANLG/PWM 4DMP |
Detailed Description | Hall Effect Sensor Linear, Rotary Position External Magnet, Not Included PC Pin |
Manufacturer Standard Lead Time | 2 weeks |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Melexis | |
Series | Triaxis® | |
Packaging | Tube | |
Part Status | Active | |

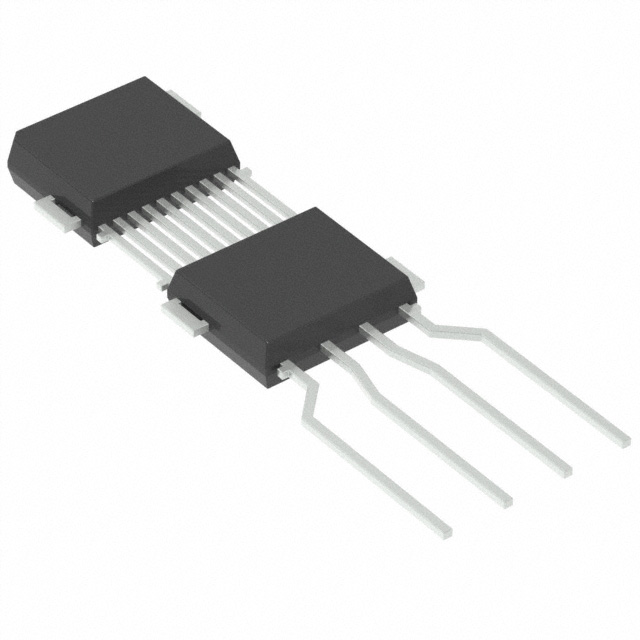

Package / Case | 4-SIP Module, Formed Leads | |
Mounting Type | Through Hole | |
Output | Analog Voltage, PWM | |
Operating Temperature | -40°C ~ 150°C | |
Termination Style | PC Pin | |
Voltage - Supply | 4.5V ~ 5.5V | |
Linearity | ±1° | |
Actuator Type | External Magnet, Not Included | |
Technology | Hall Effect | |
For Measuring | Linear, Rotary Position | |
Supplier Device Package | 4-DMP | |
Rotation Angle - Electrical, Mechanical | 0° ~ 360°, Continuous | |
Output Signal | Programmable | |
Grade | Automotive | |
Qualification | AEC-Q100 |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | MLX90364LVS-ADD-303-SP |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
Moisture Sensitivity Level (MSL) | Not Applicable | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
QUANTITY | UNIT PRICE | EXT PRICE |
---|---|---|
80 | $5.55 | $444.00 |
