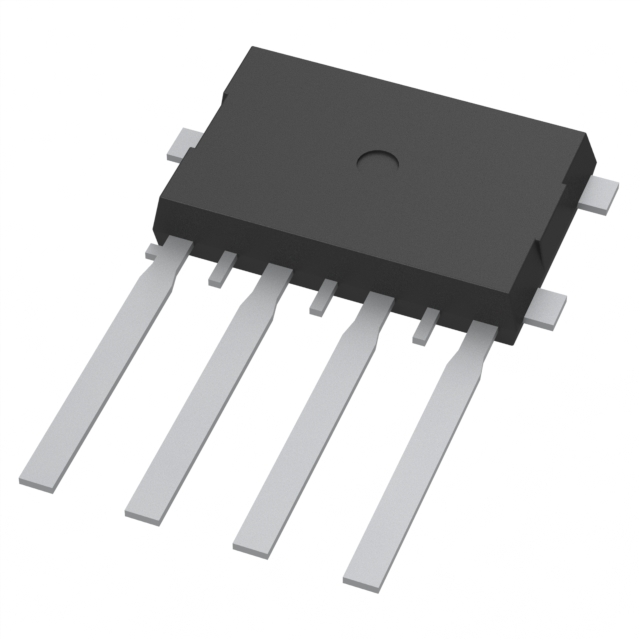

MLX90421GVD-ADC-000-RX

MLX90421GVD-ADC-000-RX

Part Number	MLX90421GVD-ADC-000-RX
Manufacturer	Melexis
Other Part Numbers	413-MLX90421GVD-ADC-000-RXTR-ND 413-MLX90421GVD-ADC-000-RXCT-ND 413-MLX90421GVD-ADC-000-RXDKR-ND 413-MLX90421GVD-ADC-000-RXTR 413-MLX90421GVD-ADC-000-RXCT 413-MLX90421GVD-ADC-000-RXDKR
Description	SENSOR MAG POS RATIO/PWM 4SMP
Detailed Description	Hall Effect Sensor Linear, Rotary Position External Magnet, Not Included PC Pin
Manufacturer Standard Lead Time	28 weeks
Datasheet	Datasheet

Product Attributes

Category		Sensors, Transducers Position Sensors Angle, Linear Position Measuring
Manufacturer		Melexis
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SIP Module
Mounting Type		Through Hole
Output		Analog Voltage, PWM
Operating Temperature		-40°C ~ 160°C
Termination Style		PC Pin
Voltage - Supply		4.5V ~ 5.5V
Linearity		±1°
Actuator Type		External Magnet, Not Included
Technology		Hall Effect
For Measuring		Linear, Rotary Position
Supplier Device Package		SMP-4
Rotation Angle - Electrical, Mechanical		0° ~ 360°, Continuous
Output Signal		Programmable

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MLX90421GVD-ADC-000-RX

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Available To Order

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
{{ p.name }}	{{ numberFormat(p.buyQty) }}	{{ priceFormat(p.unitPrice) }}	{{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

{{ package.name }}

QUANTITY	UNIT PRICE	EXT PRICE
{{ numberFormat(price.break_quantity) }}	{{ priceFormat(price.unit_price) }}	{{ priceFormat(price.break_quantity * price.unit_price) }}

Detailed pricing is currently unavailable.

Detailed packaging information is temporarily unavailable.
