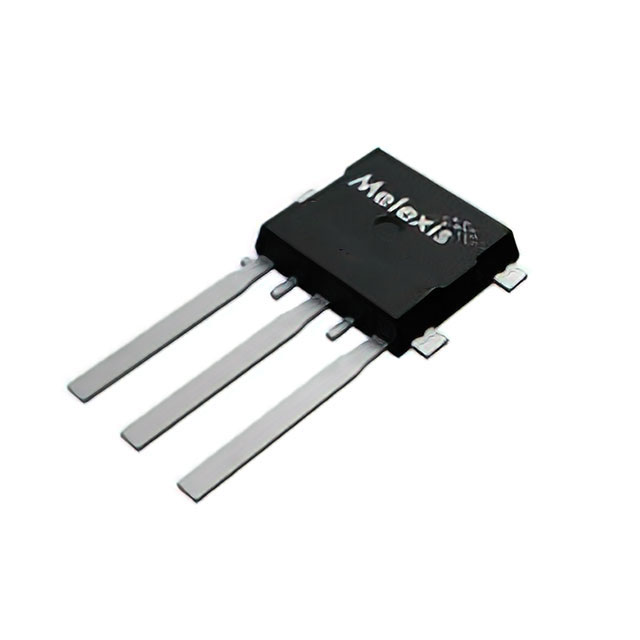

MLX90422GVE-ADD-030-SP

MLX90422GVE-ADD-030-SP

Part Number	MLX90422GVE-ADD-030-SP
Manufacturer	Melexis
Other Part Numbers	413-MLX90422GVE-ADD-030-SP-ND 413-MLX90422GVE-ADD-030-SP
Description	SENSOR MAG POS RATIO/PWM 3SMP
Detailed Description	Hall Effect Sensor Linear, Rotary Position External Magnet, Not Included PC Pin
Manufacturer Standard Lead Time	2 weeks
Datasheet	Datasheet

Product Attributes

Category		Sensors, Transducers Position Sensors Angle, Linear Position Measuring
Manufacturer		Melexis
Series
Packaging		Tube
Part Status		Active
Package / Case		3-SIP Module
Mounting Type		Through Hole
Output		SENT
Operating Temperature		-40°C ~ 160°C
Termination Style		PC Pin
Voltage - Supply		4.5V ~ 5.5V
Linearity		±1°
Actuator Type		External Magnet, Not Included
Technology		Hall Effect
For Measuring		Linear, Rotary Position
Supplier Device Package		SMP-3
Rotation Angle - Electrical, Mechanical		0° ~ 360°, Continuous
Output Signal		Programmable

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MLX90422GVE-ADD-030-SP

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
