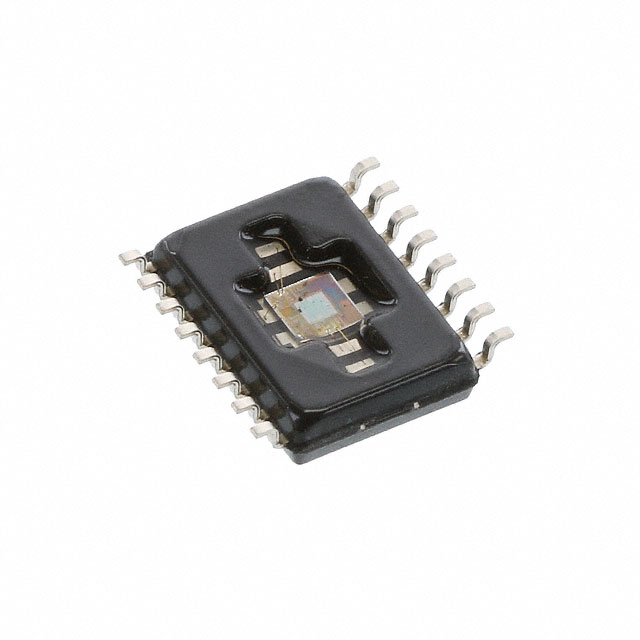

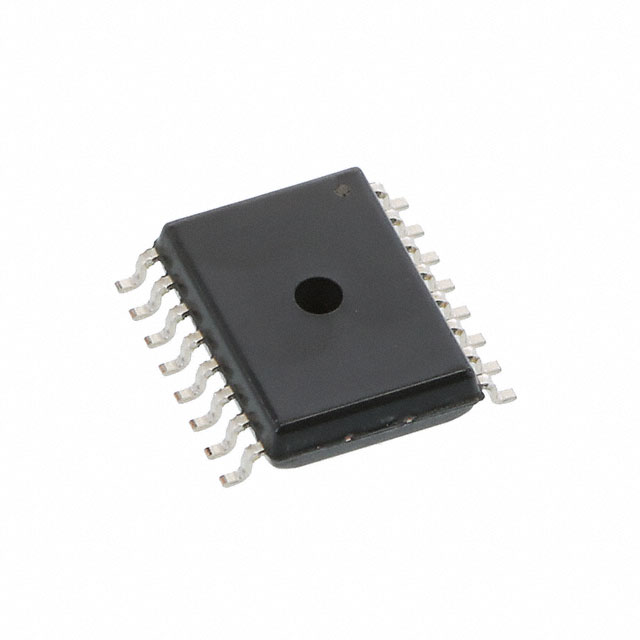

MLX90809LXG-EAD-003-SP

MLX90809LXG-EAD-003-SP

Part Number	MLX90809LXG-EAD-003-SP
Manufacturer	Melexis
Other Part Numbers	MLX90809LXG-EAD-003-SP-ND
Description	SENSOR 14.5PSID 4.5V 16SOIC
Detailed Description	Pressure Sensor 14.5PSI (100kPa) Differential 0.5 V ~ 4.5 V 16-SOIC (0.295", 7.50mm Width) Exposed Pad
Manufacturer Standard Lead Time	2 weeks

Product Attributes

Category		Sensors, Transducers Pressure Sensors, Transducers
Manufacturer		Melexis
Series
Packaging		Bulk
Part Status		Active
Features		Amplified Output, Temperature Compensated
Package / Case		16-SOIC (0.295", 7.50mm Width) Exposed Pad
Output Type		Analog Voltage
Mounting Type		Surface Mount
Output		0.5 V ~ 4.5 V
Operating Pressure		14.5PSI (100kPa)
Pressure Type		Differential
Accuracy		±1.5%
Operating Temperature		-40°C ~ 150°C
Termination Style		Gull Wing
Voltage - Supply		4.5V ~ 5.5V
Applications		Board Mount
Supplier Device Package		16-SOIC
Port Style		No Port

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MLX90809LXG-EAD-003-SP

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 38

Can ship immediately.
