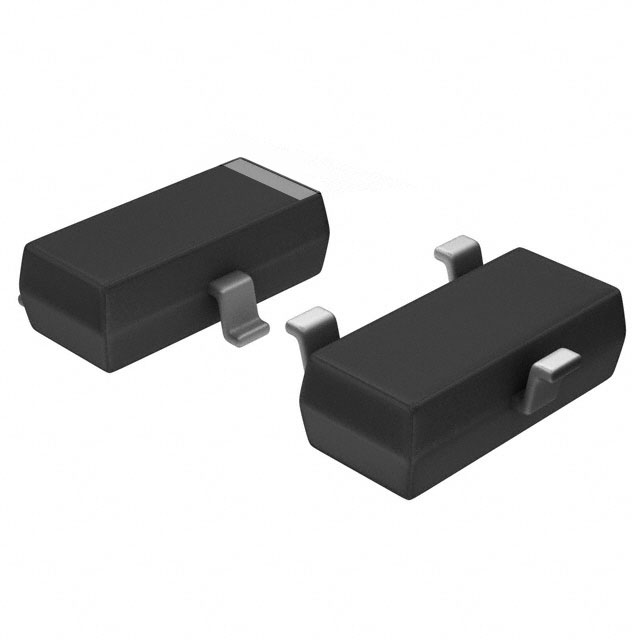

MLX92241LSE-AAA-014-RE

MLX92241LSE-AAA-014-RE

Part Number	MLX92241LSE-AAA-014-RE
Manufacturer	Melexis
Other Part Numbers	MLX92241LSE-AAA-014-RE-ND
Description	MAGNETIC SWITCH UNIPOLAR TSOT3
Detailed Description	Digital Switch Unipolar Switch Open Collector Hall Effect TSOT-23-3
Manufacturer Standard Lead Time	16 weeks

Product Attributes

Category		Sensors, Transducers Magnetic Sensors Switches (Solid State)
Manufacturer		Melexis
Series
Packaging		Tape & Reel (TR)
Part Status		Active
Features		Temperature Compensated
Package / Case		TO-236-3, SC-59, SOT-23-3
Output Type		Open Collector
Polarization		South Pole
Mounting Type		Surface Mount
Function		Unipolar Switch
Operating Temperature		-40°C ~ 150°C (TA)
Voltage - Supply		2.7V ~ 24V
Technology		Hall Effect
Sensing Range		12mT Trip, 5mT Release
Current - Supply (Max)		17mA
Supplier Device Package		TSOT-23-3
Test Condition		25°C

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MLX92241LSE-AAA-014-RE
Datasheets		MLX92242,41,21 Flyer
Datasheets		Latch, Switch Guide

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
