MM74HC273MTCX _ Flip Flops_Logic_Integrated Circuits (ICs)

Part Number	MM74HC273MTCX
Manufacturer	Fairchild Semiconductor
Other Part Numbers	2156-MM74HC273MTCX-ND FAIFSCMM74HC273MTCX 2156-MM74HC273MTCX
Description	D FLIP-FLOP, HC/UH SERIES, 1-FUN

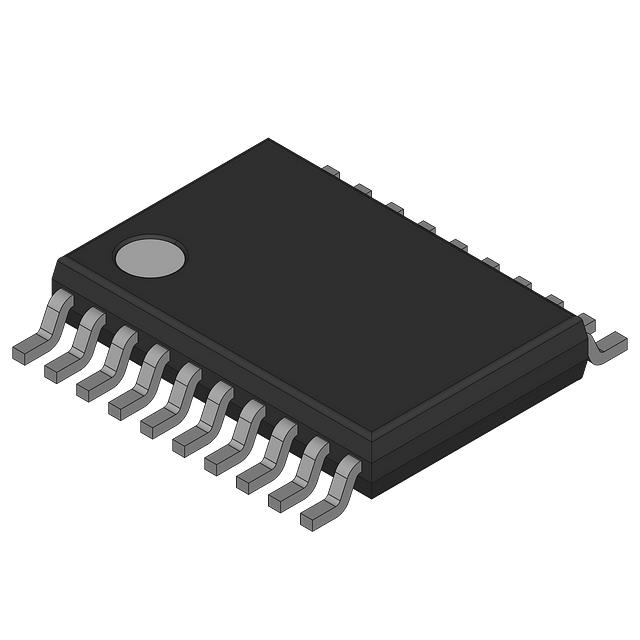

Detailed Description	Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-TSSOP (0.173", 4.40mm Width)

Category		Integrated Circuits (ICs) Logic Flip Flops
Manufacturer		Fairchild Semiconductor
Series		74HC
Packaging		Bulk
Part Status		Active
Package / Case		20-TSSOP (0.173", 4.40mm Width)
Output Type		Non-Inverted
Mounting Type		Surface Mount
Number of Elements		1
Function		Master Reset
Type		D-Type
Operating Temperature		-40°C ~ 85°C (TA)
Voltage - Supply		2V ~ 6V
Current - Quiescent (Iq)		8 µA
Current - Output High, Low		5.2mA, 5.2mA
Trigger Type		Positive Edge
Clock Frequency		78 MHz
Input Capacitance		7 pF
Supplier Device Package		20-TSSOP
Max Propagation Delay @ V, Max CL		23ns @ 6V, 50pF
Number of Bits per Element		8
