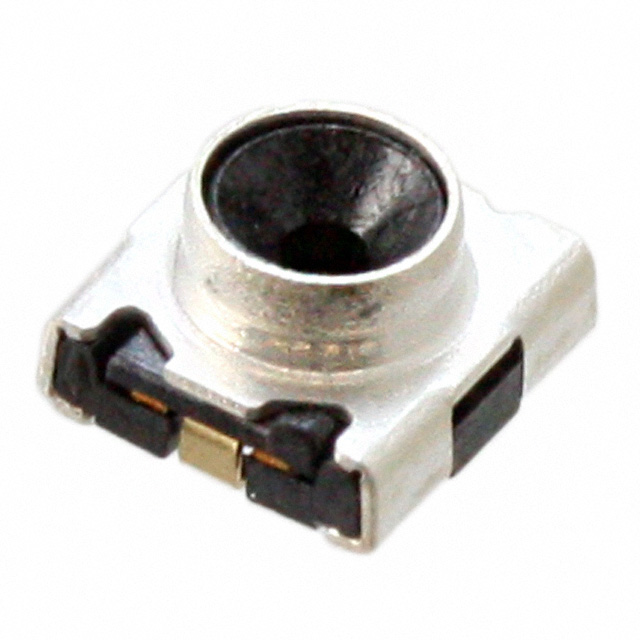

MM8430-2610RA1

MM8430-2610RA1

Part Number	MM8430-2610RA1
Manufacturer	TOKO / Murata
Other Part Numbers	490-4980-2-ND 490-4980-1-ND 490-4980-6-ND 490-4980-1 490-4980-2 490-4980-6 MM84302610RA1
Description	CONN SWD RCPT STR 50 OHM SMD
Detailed Description	SWD Connector Receptacle, Female Socket 50 Ohms Surface Mount Solder
Manufacturer Standard Lead Time	19 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Manufacturer		TOKO / Murata
Series		8430
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Features		Internal Switch
Connector Type		Receptacle, Female Socket
Contact Termination		Solder
Impedance		50 Ohms
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 85°C
Fastening Type		Snap-On
Connector Style		SWD
Housing Color		Silver
Shield Termination		Solder
Frequency - Max		6 GHz
Number of Ports		1

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MM8430-2610RA1
Datasheets		Coaxial Connectors (Chip Type Receptacle) Part Numbering
Datasheets		MM8430 Series

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 29016

Can ship immediately.

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Cut Tape (CT)	1	$0.50	$0.50
Total Amount: $0.50

Tape & Reel (TR)

QUANTITY	UNIT PRICE	EXT PRICE
1,000	$0.26	$260.00
2,000	$0.25	$500.00
3,000	$0.24	$720.00
5,000	$0.23	$1,150.00
10,000	$0.21	$2,100.00
25,000	$0.20	$5,000.00

Cut Tape (CT)

QUANTITY	UNIT PRICE	EXT PRICE
1	$0.50	$0.50
10	$0.44	$4.40
25	$0.40	$10.00
50	$0.38	$19.00
100	$0.36	$36.00
250	$0.33	$82.50
500	$0.31	$155.00
