MMBFJ175LT1G

MMBFJ175LT1G

Part Number	MMBFJ175LT1G
Manufacturer	Sanyo Semiconductor/onsemi
Other Part Numbers	MMBFJ175LT1GOSTR-ND MMBFJ175LT1GOSCT-ND MMBFJ175LT1GOSDKR-ND MMBFJ175LT1GOS ONSONSMMBFJ175LT1G MMBFJ175LT1GOSDKR 2156-MMBFJ175LT1G-OS MMBFJ175LT1GOS-ND MMBFJ175LT1GOSTR MMBFJ175LT1GOSCT
Description	JFET P-CH 30V SOT23-3
Detailed Description	JFET P-Channel 30 V 225 mW Surface Mount SOT-23-3 (TO-236)
Manufacturer Standard Lead Time	19 weeks
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Transistors JFETs
Manufacturer		Sanyo Semiconductor/onsemi
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

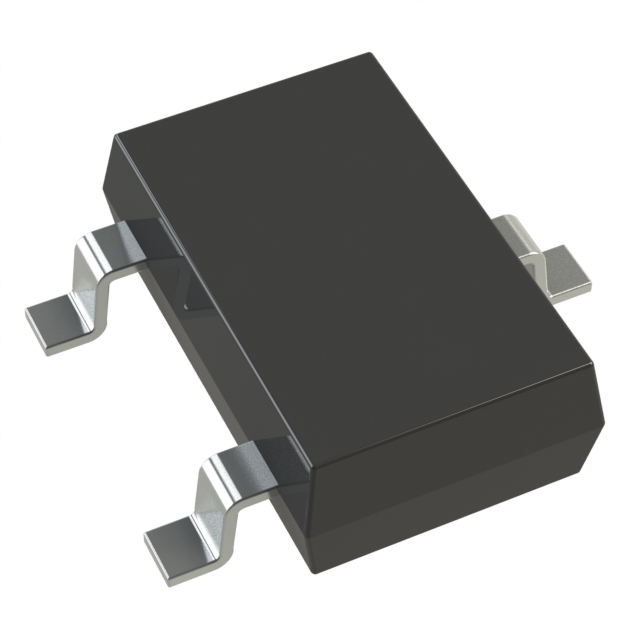

Package / Case		TO-236-3, SC-59, SOT-23-3
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 150°C (TJ)
FET Type		P-Channel
Input Capacitance (Ciss) (Max) @ Vds		11pF @ 10V (VGS)
Voltage - Breakdown (V(BR)GSS)		30 V
Supplier Device Package		SOT-23-3 (TO-236)
Power - Max		225 mW
Resistance - RDS(On)		125 Ohms
Voltage - Cutoff (VGS off) @ Id		3 V @ 10 nA
Current - Drain (Idss) @ Vds (Vgs=0)		7 mA @ 15 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MMBFJ175LT1G
Datasheets		Material Declaration MMBFJ175LT1G
Datasheets		onsemi REACH
Datasheets		onsemi RoHS
Datasheets		Multiple Devices 21/Jan/2010
Datasheets		SOT23 16/Sep/2016
Datasheets		Bond Wire 21/Dec/2021

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.21.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 11694

Can ship immediately.
