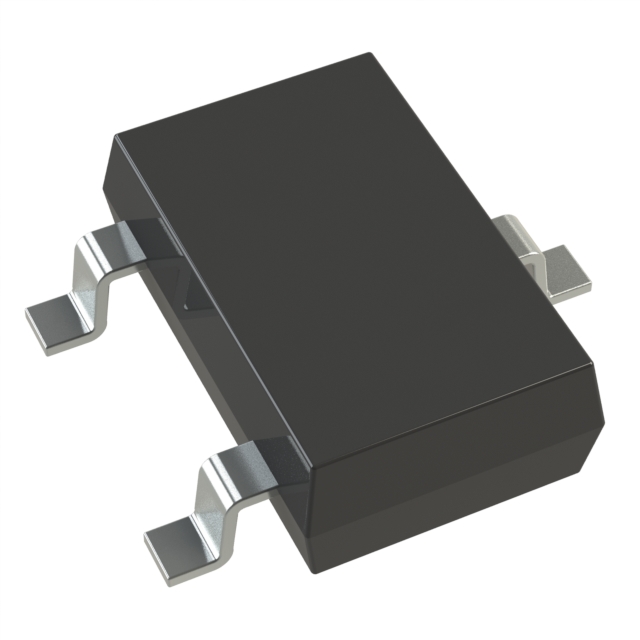

MMBT6427LT1G

Part Number
MMBT6427LT1G
Manufacturer Sanyo Semiconductor/onsemi
Other Part Numbers
MMBT6427LT1GOSTR-ND
MMBT6427LT1GOSCT-ND
MMBT6427LT1GOSDKR-ND
ONSONSMMBT6427LT1G
MMBT6427LT1GOSDKR
MMBT6427LT1GOS
MMBT6427LT1GOSTR
2156-MMBT6427LT1G-OS
MMBT6427LT1GOS-ND
MMBT6427LT1GOSCT
Description TRANS NPN DARL 40V 0.5A SOT23-3
Detailed Description Bipolar (BJT) Transistor NPN - Darlington 40 V 500 mA 225 mW Surface Mount SOT-23-3 (TO-236)
Manufacturer Standard Lead Time 28 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Sanyo Semiconductor/onsemi
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Package / Case TO-236-3, SC-59, SOT-23-3
Mounting Type Surface Mount
Transistor Type NPN - Darlington
Operating Temperature -55°C ~ 150°C (TJ)
Vce Saturation (Max) @ Ib, Ic 1.5V @ 500µA, 500mA
Current - Collector Cutoff (Max) 1µA
DC Current Gain (hFE) (Min) @ Ic, Vce 20000 @ 100mA, 5V
Supplier Device Package SOT-23-3 (TO-236)
Current - Collector (Ic) (Max) 500 mA
Voltage - Collector Emitter Breakdown (Max) 40 V
Power - Max 225 mW

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.21.0095
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 112692

Can ship immediately.
