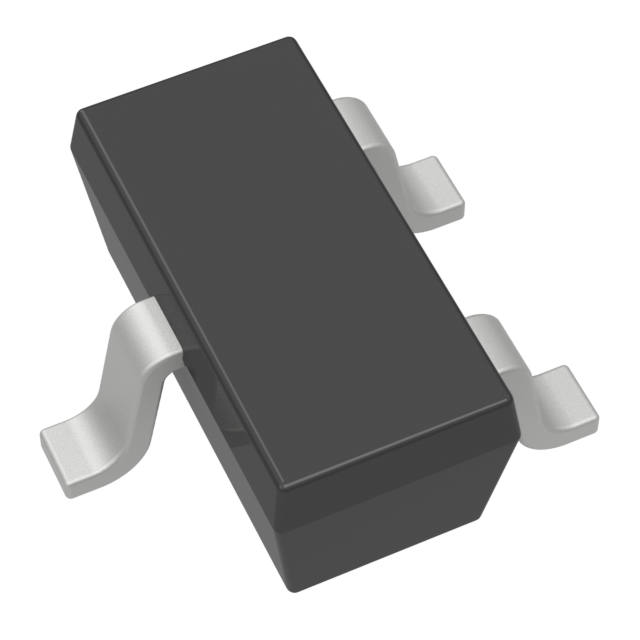

MMBZ5227BT-7-F

MMBZ5227BT-7-F

Part Number	MMBZ5227BT-7-F
Manufacturer	Zetex Semiconductors (Diodes Inc.)
Other Part Numbers	MMBZ5227BT-7-FDITR-ND MMBZ5227BT-7-FDICT-ND MMBZ5227BT-7-FDIDKR-ND MMBZ5227BT-7-FDIDKR MMBZ5227BT-7-FDITR -MMBZ5227BT-7-FDIDKR MMBZ5227BT-7-FDICT -MMBZ5227BT-7-FDICT -MMBZ5227BT-7-FDITR MMBZ5227BT-7-F-ND
Description	DIODE ZENER 3.6V 150MW SOT523
Detailed Description	Zener Diode 3.6 V 150 mW ±5% Surface Mount SOT-523
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Diodes Zener Single Zener Diodes
Manufacturer		Zetex Semiconductors (Diodes Inc.)
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±5%
Package / Case		SOT-523
Mounting Type		Surface Mount
Operating Temperature		-65°C ~ 150°C
Voltage - Zener (Nom) (Vz)		3.6 V
Impedance (Max) (Zzt)		24 Ohms
Supplier Device Package		SOT-523
Power - Max		150 mW
Voltage - Forward (Vf) (Max) @ If		900 mV @ 10 mA
Current - Reverse Leakage @ Vr		15 µA @ 1 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MMBZ5227BT-7-F
Datasheets		Diodes Environmental Compliance Cert
Datasheets		Green Encapsulate Change 09/July/2007
Datasheets		Wafer Site Transfer 05/Oct/2021

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 2978

Can ship immediately.

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Cut Tape (CT)	1	$0.41	$0.41
Total Amount: $0.41

Tape & Reel (TR)

QUANTITY	UNIT PRICE	EXT PRICE
3,000	$0.07	$210.00
6,000	$0.07	$420.00
9,000	$0.06	$540.00
30,000	$0.06	$1,800.00
75,000	$0.05	$3,750.00
150,000	$0.05	$7,500.00

Cut Tape (CT)

QUANTITY	UNIT PRICE	EXT PRICE
1	$0.41	$0.41
10	$0.29	$2.90
100	$0.15	$15.00
500	$0.13	$65.00
1,000	$0.10	$100.00
