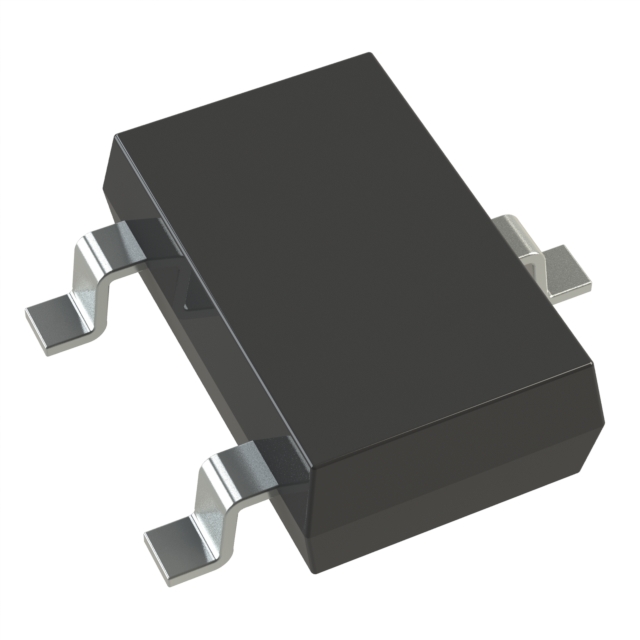

MMBZ5244BLT1G

MMBZ5244BLT1G

Part Number	MMBZ5244BLT1G
Manufacturer	Sanyo Semiconductor/onsemi
Other Part Numbers	MMBZ5244BLT1GOSTR-ND MMBZ5244BLT1GOSCT-ND MMBZ5244BLT1GOSDKR-ND ONSONSMMBZ5244BLT1G MMBZ5244BLT1GOSDKR MMBZ5244BLT1GOSTR 2156-MMBZ5244BLT1G-OS MMBZ5244BLT1GOS MMBZ5244BLT1GOSCT MMBZ5244BLT1GOS-ND 2832-MMBZ5244BLT1G
Description	DIODE ZENER 14V 225MW SOT23-3
Detailed Description	Zener Diode 14 V 225 mW ±5% Surface Mount SOT-23-3 (TO-236)
Manufacturer Standard Lead Time	30 weeks
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Diodes Zener Single Zener Diodes
Manufacturer		Sanyo Semiconductor/onsemi
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±5%
Package / Case		TO-236-3, SC-59, SOT-23-3
Mounting Type		Surface Mount
Operating Temperature		-65°C ~ 150°C
Voltage - Zener (Nom) (Vz)		14 V
Impedance (Max) (Zzt)		15 Ohms
Supplier Device Package		SOT-23-3 (TO-236)
Power - Max		225 mW
Voltage - Forward (Vf) (Max) @ If		900 mV @ 10 mA
Current - Reverse Leakage @ Vr		100 nA @ 10 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MMBZ5244BLT1G
Datasheets		onsemi RoHS
Datasheets		onsemi REACH
Datasheets		Material Declaration MMBZ5244BLT1G
Datasheets		Glue Mount Process 11/July/2008
Datasheets		Copper Wire 08/Jun/2009
Datasheets		Mult Dev Mold Comp Chg 7/Apr/2020

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 56399

Can ship immediately.
