MMI-M1FG04S52B

MMI-M1FG04S52B

Part Number
MMI-M1FG04S52B
Manufacturer Adam Tech
Other Part Numbers
2057-MMI-M1FG04S52B-ND
2057-MMI-M1FG04S52B
Description CONN PLUG FMALE 4P GOLD SLDR CUP

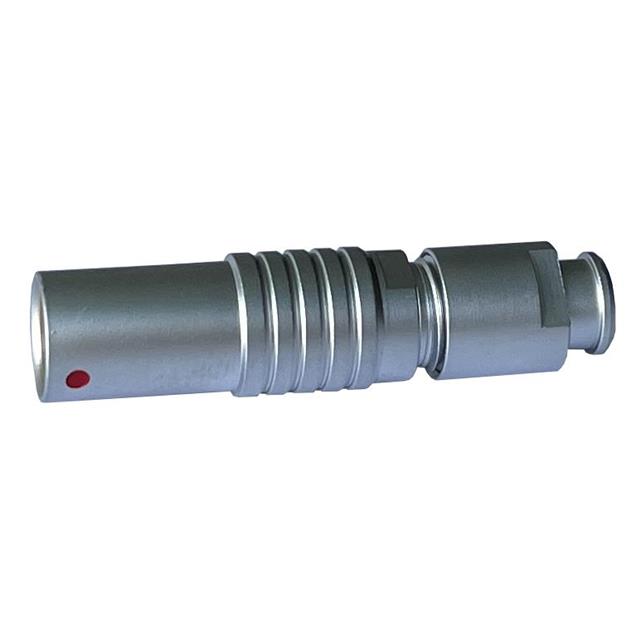

Detailed Description 4 Position Circular Connector Plug, Female Sockets Solder Cup
Manufacturer Standard Lead Time 14 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Adam Tech
Series
MMI
Packaging
Bag
Part Status Active
Features Backshell
Connector Type Plug, Female Sockets
Color Silver
Voltage Rating 250V
Current Rating (Amps) 8A
Mounting Type Free Hanging (In-Line)
Shielding Unshielded
Number of Positions 4
Orientation G
Operating Temperature -55°C ~ 150°C
Fastening Type Push-Pull
Termination Solder Cup
Ingress Protection IP50 - Dust Protected
Cable Opening 0.445" (11.30mm)
Contact Material Brass
Contact Finish - Mating Gold
Shell Material Brass
Shell Finish Chrome
Insert Material Polyphenylene Sulfide (PPS)
Primary Material Metal

Documents & Media

RESOURCE TYPE LINK
Datasheets MMI-M1FG04S52B

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.69.4020
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 100

Can ship immediately.
PACKAGING QUANTITY UNIT PRICE EXT PRICE
Bag 1 $20.02 $20.02
Total Amount: $20.02

Bag

QUANTITY UNIT PRICE EXT PRICE
1 $20.02 $20.02
10 $17.35 $173.50
30 $16.44 $493.20
50 $16.21 $810.50
100 $14.30 $1,430.00
250 $13.35 $3,337.50
500 $13.06 $6,530.00
