MMSTA14-7-F

MMSTA14-7-F

Part Number	MMSTA14-7-F
Manufacturer	Zetex Semiconductors (Diodes Inc.)
Other Part Numbers	MMSTA14-FDITR-ND MMSTA14-FDICT-ND MMSTA14-FDIDKR-ND MMSTA14-FDIDKR 1034-MMSTA14-FDIDKRINACTIVE 1034-MMSTA14-FDICT-ND MMSTA147F MMSTA14-FDITR 1034-MMSTA14-FDICTINACTIVE 1034-MMSTA14-FDICT 1034-MMSTA14-FDIDKR-ND MMSTA14-FDICT 1034-MMSTA14-FDIDKR

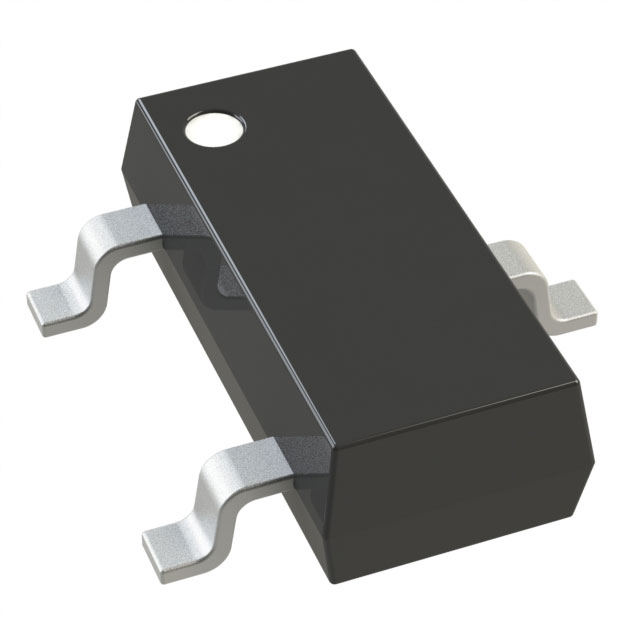

Description	TRANS NPN DARL 30V 0.3A SOT323
Detailed Description	Bipolar (BJT) Transistor NPN - Darlington 30 V 300 mA 125MHz 200 mW Surface Mount SOT-323
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Transistors Bipolar (BJT) Single Bipolar Transistors
Manufacturer		Zetex Semiconductors (Diodes Inc.)
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		SC-70, SOT-323
Mounting Type		Surface Mount
Transistor Type		NPN - Darlington
Operating Temperature		-55°C ~ 150°C (TJ)
Vce Saturation (Max) @ Ib, Ic		1.5V @ 100µA, 100mA
Current - Collector Cutoff (Max)		100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce		20000 @ 100mA, 5V
Frequency - Transition		125MHz
Supplier Device Package		SOT-323
Current - Collector (Ic) (Max)		300 mA
Voltage - Collector Emitter Breakdown (Max)		30 V
Power - Max		200 mW
