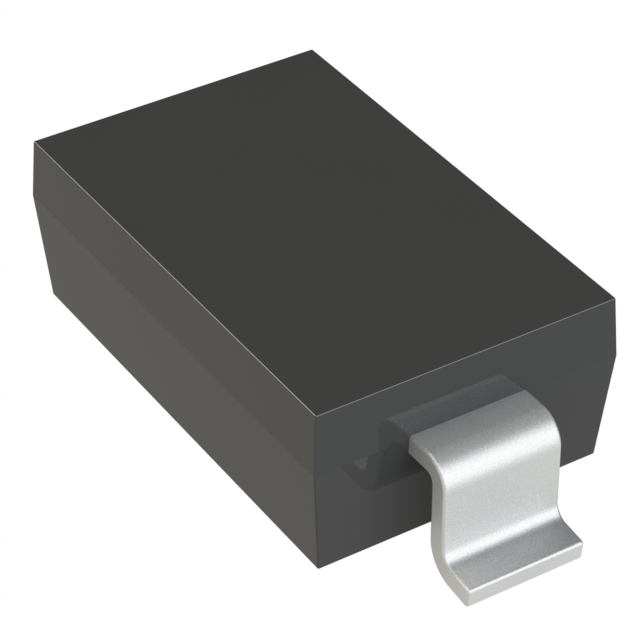

MMSZ5247B-HF

Part Number
MMSZ5247B-HF
Manufacturer Comchip Technology
Other Part Numbers
641-MMSZ5247B-HFTR-ND
641-MMSZ5247B-HFTR
Description DIODE ZENER 17V 500MW SOD123
Detailed Description Zener Diode 17 V 500 mW ±5% Surface Mount SOD-123
Manufacturer Standard Lead Time 12 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Comchip Technology
Series
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±5%
Package / Case SOD-123
Mounting Type Surface Mount
Operating Temperature -55°C ~ 150°C (TJ)
Voltage - Zener (Nom) (Vz) 17 V
Impedance (Max) (Zzt) 19 Ohms
Supplier Device Package SOD-123
Power - Max 500 mW
Voltage - Forward (Vf) (Max) @ If 900 mV @ 10 mA
Current - Reverse Leakage @ Vr 100 nA @ 13 V

Documents & Media

RESOURCE TYPE LINK
Datasheets Comchip Technology RoHS Cert

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0050
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status ROHS3 Compliant
