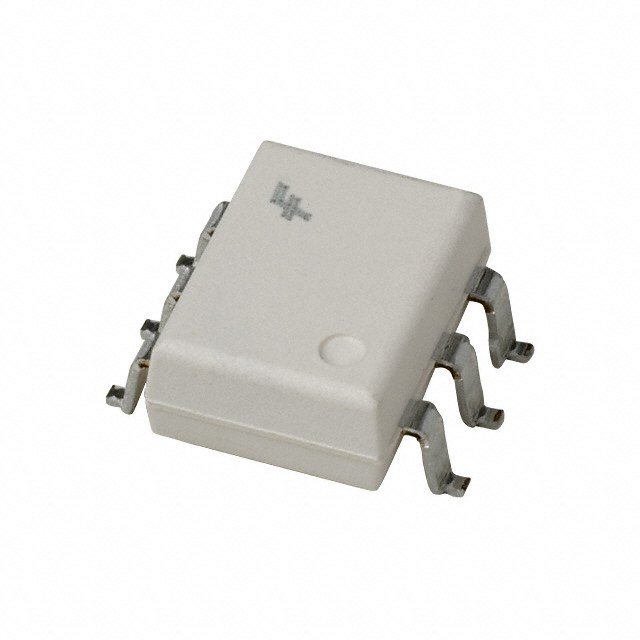

MOC8106S _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	MOC8106S
Manufacturer	Sanyo Semiconductor/onsemi
Other Part Numbers	MOC8106S-ND MOC8106S-NDR
Description	OPTOISOLATOR 5.3KV TRANS 6-SMD
Detailed Description	Optoisolator Transistor Output 5300Vrms 1 Channel 6-SMD
Datasheet	Datasheet

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		Sanyo Semiconductor/onsemi
Series
Packaging		Tube
Part Status		Obsolete
Package / Case		6-SMD, Gull Wing
Output Type		Transistor
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 100°C
Voltage - Forward (Vf) (Typ)		1.15V
Input Type		DC
Current - Output / Channel		50mA
Voltage - Isolation		5300Vrms
Current Transfer Ratio (Min)		50% @ 10mA
Vce Saturation (Max)		400mV
Current Transfer Ratio (Max)		150% @ 10mA
Supplier Device Package		6-SMD
Voltage - Output (Max)		70V
Turn On / Turn Off Time (Typ)		2µs, 3µs
Rise / Fall Time (Typ)		1µs, 2µs
Number of Channels		1
Current - DC Forward (If) (Max)		100 mA

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected

This product is no longer manufactured.
