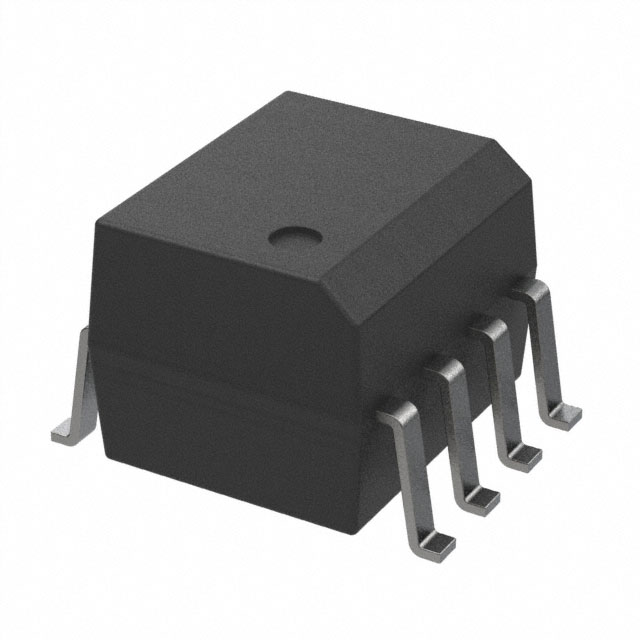

MOCD211M _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	MOCD211M
Manufacturer	Fairchild Semiconductor
Other Part Numbers	2156-MOCD211M-ND ONSONSMOCD211M 2156-MOCD211M
Description	TRANSISTOR OUTPUT OPTOCOUPLER, 2
Detailed Description	Optoisolator Transistor Output 2500Vrms 2 Channel 8-SOIC

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		Fairchild Semiconductor
Series
Packaging		Bulk
Part Status		Active
Package / Case		8-SOIC (0.154", 3.90mm Width)
Output Type		Transistor
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 100°C
Voltage - Forward (Vf) (Typ)		1.25V
Input Type		DC
Current - Output / Channel		150mA
Voltage - Isolation		2500Vrms
Current Transfer Ratio (Min)		20% @ 10mA
Vce Saturation (Max)		400mV
Supplier Device Package		8-SOIC
Voltage - Output (Max)		30V
Turn On / Turn Off Time (Typ)		7.5µs, 5.7µs
Rise / Fall Time (Typ)		3.2µs, 4.7µs
Number of Channels		2
Current - DC Forward (If) (Max)		60 mA
