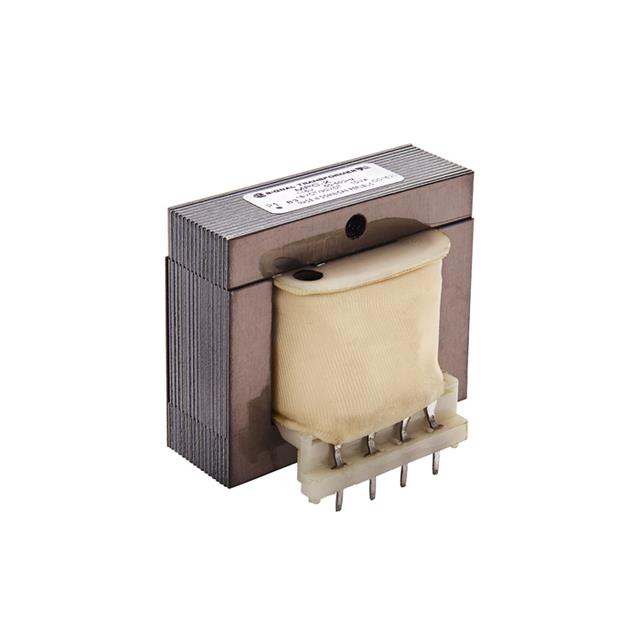

MPC-X-12

MPC-X-12

Part Number	MPC-X-12
Manufacturer	Signal Transformer
Other Part Numbers	MPC-X-12-ND
Description	PWR XFMR LAMINATED 10VA TH
Manufacturer Standard Lead Time	18 weeks
Datasheet	Datasheet

Product Attributes

Category		Transformers Power Transformers
Manufacturer		Signal Transformer
Series		MPC
Packaging		Bulk
Part Status		Active
Size / Dimension		47.60mm L x 36.50mm W
Mounting Type		Through Hole
Type		Laminated Core
Weight		0.56 lb (254.01 g)
Termination Style		PC Pin
Primary Winding(s)		Single
Secondary Winding(s)		Dual
Power - Max		10VA
Voltage - Isolation		1500Vrms
Current - Output (Max)		Parallel 360mA, Series 60mA
Voltage - Primary		115V
Height - Seated (Max)		41.70mm
Voltage - Secondary (Full Load)		Parallel 5V, Series 12V
Center Tap		Yes

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MPC-X-12
Datasheets		Signal Transformer REACH
Datasheets		RoHS EU Declaration Signal Transformer
Datasheets		Tape Color 20/Jan/2018

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.31.4035
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
