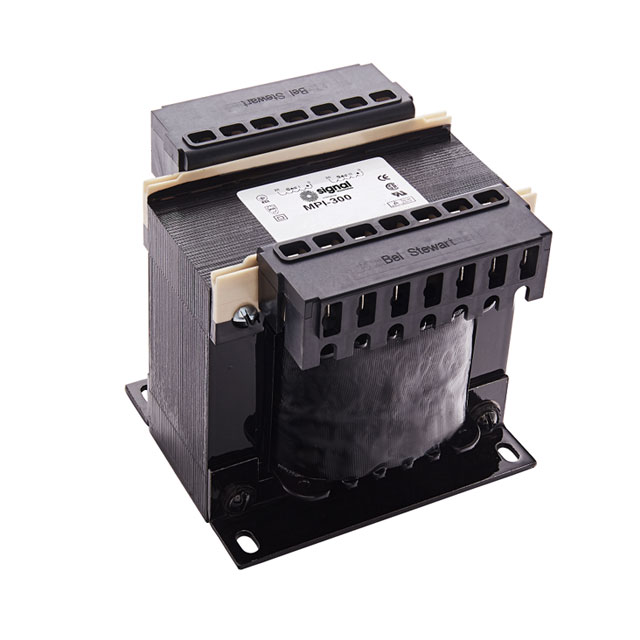

MPI-300-20

MPI-300-20

Part Number	MPI-300-20
Manufacturer	Signal Transformer
Other Part Numbers	MPI-300-20-ND
Description	PWR XFMR LAMINATED 300VA CHAS MT
Manufacturer Standard Lead Time	18 weeks
Datasheet	Datasheet

Product Attributes

Category		Transformers Power Transformers
Manufacturer		Signal Transformer
Series		MPI
Packaging		Bulk
Part Status		Active
Size / Dimension		104.80mm L x 113.10mm W
Mounting Type		Chassis Mount
Type		Laminated Core
Weight		7.8 lbs (3.5 kg)
Termination Style		Terminal Block
Primary Winding(s)		Dual, Multiple Taps
Secondary Winding(s)		Dual
Power - Max		300VA
Voltage - Isolation		4000Vrms
Current - Output (Max)		Parallel 30A, Series 15A
Voltage - Primary		100V, 115V, 200V, 215V, 230V
Height - Seated (Max)		98.20mm
Voltage - Secondary (Full Load)		Parallel 10V, Series 20V
Center Tap		No

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MPI-300-20
Datasheets		Signal Transformer REACH
Datasheets		RoHS EU Declaration Signal Transformer

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.31.4065
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
