MPS3563G

MPS3563G

Part Number
MPS3563G
Manufacturer Sanyo Semiconductor/onsemi
Other Part Numbers
MPS3563GOS-ND
MPS3563GOS
ONSONSMPS3563G
2156-MPS3563G-ON
Description TRANS NPN 12V 1.5GHZ TO92
Detailed Description Bipolar (BJT) Transistor NPN 12 V 50 mA 600MHz 350 mW Through Hole TO-92 (TO-226)
Datasheet Datasheet

Product Attributes

Category
Manufacturer Sanyo Semiconductor/onsemi
Series
Packaging
Bulk
Part Status Obsolete

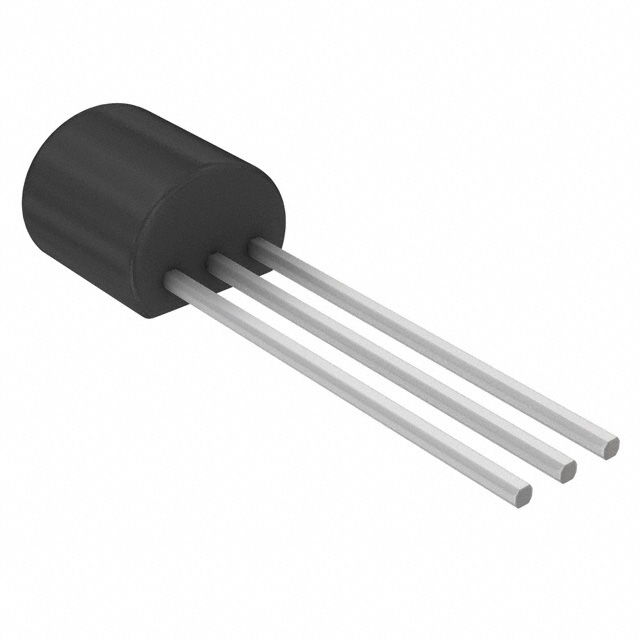

Package / Case TO-226-3, TO-92-3 Long Body
Mounting Type Through Hole
Transistor Type NPN
Operating Temperature -55°C ~ 150°C (TJ)
Current - Collector Cutoff (Max) 10nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 20 @ 8mA, 10V
Frequency - Transition 600MHz
Supplier Device Package TO-92 (TO-226)
Current - Collector (Ic) (Max) 50 mA
Voltage - Collector Emitter Breakdown (Max) 12 V
Power - Max 350 mW

Documents & Media

RESOURCE TYPE LINK
Datasheets MPS3563G
Datasheets onsemi REACH
Datasheets onsemi RoHS
Datasheets Multiple Devices 30/Jun/2006

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.21.0075
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected

Obsolete

This product is no longer manufactured.
