Part Number |
MPS6725
|
---|---|
Manufacturer | Sanyo Semiconductor/onsemi |
Other Part Numbers |
MPS6725OS-ND
MPS6725OS
|
Description | TRANS NPN DARL 50V 1A TO92 |
Detailed Description | Bipolar (BJT) Transistor NPN - Darlington 50 V 1 A 1GHz 1 W Through Hole TO-92 (TO-226) |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Sanyo Semiconductor/onsemi | |
Series | ||
Packaging |
Bulk
|
|
Part Status | Obsolete | |

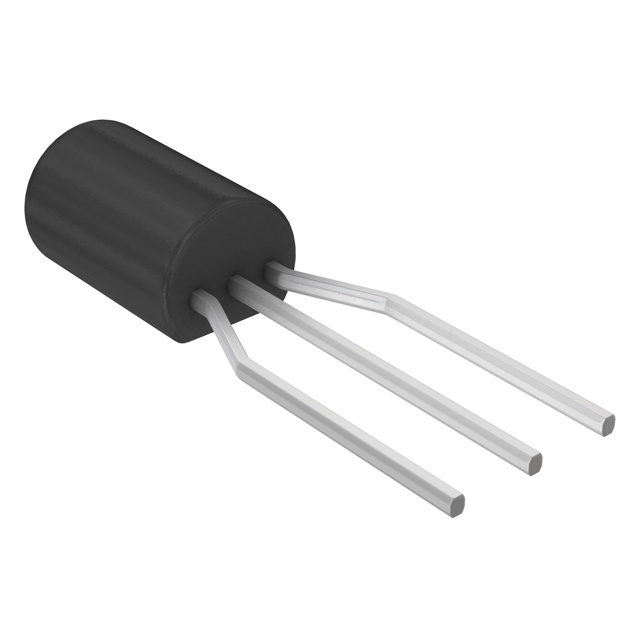

Package / Case | TO-226-3, TO-92-3 Long Body | |
Mounting Type | Through Hole | |
Transistor Type | NPN - Darlington | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Vce Saturation (Max) @ Ib, Ic | 1.5V @ 2mA, 1A | |
Current - Collector Cutoff (Max) | 100nA (ICBO) | |
DC Current Gain (hFE) (Min) @ Ic, Vce | 4000 @ 1A, 5V | |
Frequency - Transition | 1GHz | |
Supplier Device Package | TO-92 (TO-226) | |
Current - Collector (Ic) (Max) | 1 A | |
Voltage - Collector Emitter Breakdown (Max) | 50 V | |
Power - Max | 1 W |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | MPS6725 | |
Datasheets | onsemi REACH | |
Datasheets | onsemi RoHS | |
Datasheets | Multiple Devices 30/Jun/2006 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8541.29.0075 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | RoHS non-compliant |
