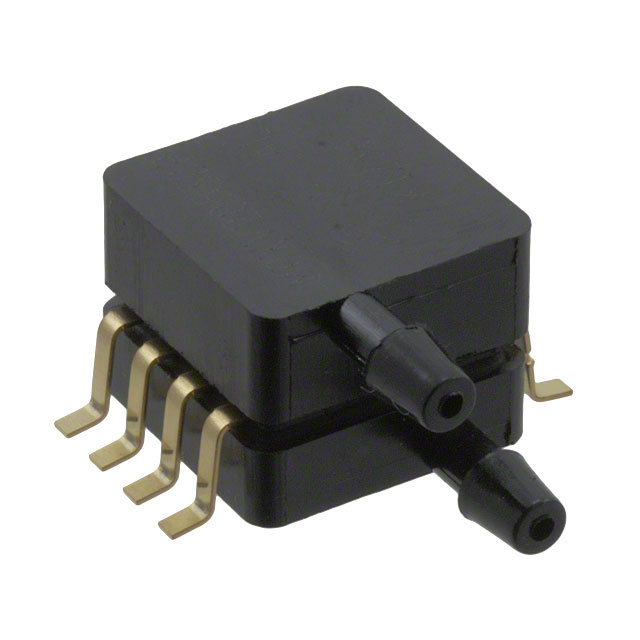

Part Number | MPXV2010DP |
---|---|
Manufacturer | NXP Semiconductors |
Other Part Numbers | MPXV2010DP-ND Q2224821 935309631117 |
Description | SENSOR 1.45PSID 0.13" .025V 8SOP |
Detailed Description | Pressure Sensor 1.45PSI (10kPa) Differential Male - 0.13" (3.3mm) Tube, Dual 0 mV ~ 25 mV (10V) 8-BSOP (0.475", 12.06mm Width) Dual Ports, Same Side |
Manufacturer Standard Lead Time | 52 weeks |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | NXP Semiconductors | |
Series | MPXV2010 | |
Packaging | Tray | |
Part Status | Active | |
Features | Temperature Compensated | |
Package / Case | 8-BSOP (0.475", 12.06mm Width) Dual Ports, Same Side | |
Output Type | Wheatstone Bridge | |
Mounting Type | Surface Mount | |
Output | 0 mV ~ 25 mV (10V) | |
Operating Pressure | 1.45PSI (10kPa) | |
Pressure Type | Differential | |
Accuracy | ±1% | |
Operating Temperature | -40°C ~ 125°C | |
Termination Style | Gull Wing | |
Voltage - Supply | 10V ~ 16V | |
Port Size | Male - 0.13" (3.3mm) Tube, Dual | |
Applications | Board Mount | |
Supplier Device Package | 8-SOP | |
Port Style | Barbed | |
Maximum Pressure | 10.88PSI (75kPa) |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | MPXV2010DP | |
Datasheets | NXP USA Inc RoHS Cert | |
Datasheets | NXP USA Inc REACH | |
Datasheets | COO/Label 15-apr-2022 | |
Datasheets | All Dev Label Update 15/Dec/2020 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8542.39.0001 | |
Moisture Sensitivity Level (MSL) | Not Applicable | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
QUANTITY | UNIT PRICE | EXT PRICE |
---|---|---|
1 | $18.14 | $18.14 |
10 | $14.36 | $143.60 |
25 | $13.61 | $340.25 |
125 | $11.72 | $1,465.00 |
500 | $10.96 | $5,480.00 |
