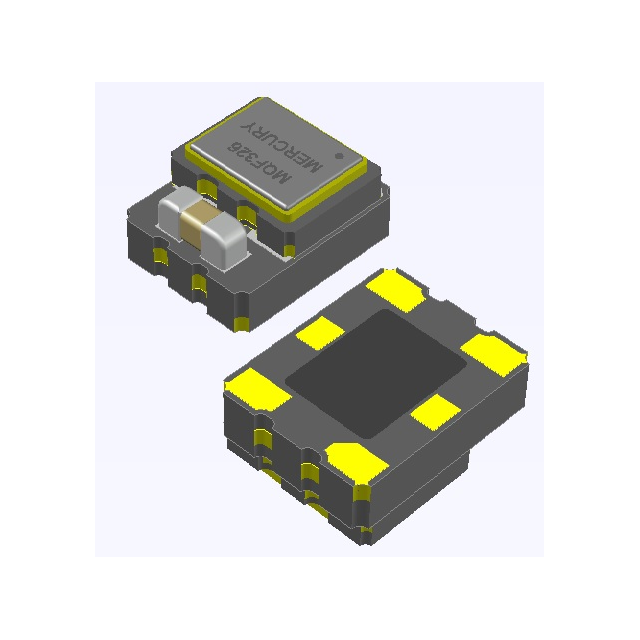

MQF326D33-864.000-2.5/-30+85

MQF326D33-864.000-2.5/-30+85

Part Number	MQF326D33-864.000-2.5/-30+85
Manufacturer	Mercury United Electronics
Other Part Numbers	2425-MQF326D33-864.000-2.5/-30+85-ND 2425-MQF326D33-864.000-2.5/-30+85
Description	XTAL OSC TCXO 864.0000MHZ LVDS
Detailed Description	864 MHz TCXO LVDS Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		Mercury United Electronics
Series		QuikXO
Packaging		Strip
Part Status		Active
Package / Case		6-SMD, No Lead
Size / Dimension		0.126" L x 0.098" W (3.20mm x 2.50mm)
Mounting Type		Surface Mount
Output		LVDS
Function		Enable/Disable
Type		TCXO
Operating Temperature		-30°C ~ 85°C
Frequency Stability		±2.5ppm
Voltage - Supply		3.3V
Current - Supply (Max)		40mA
Current - Supply (Disable) (Max)		18mA (Typ)
Height - Seated (Max)		0.063" (1.60mm)
Frequency		864 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MQF326D33-864.000-2.5/-30+85

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0060
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
