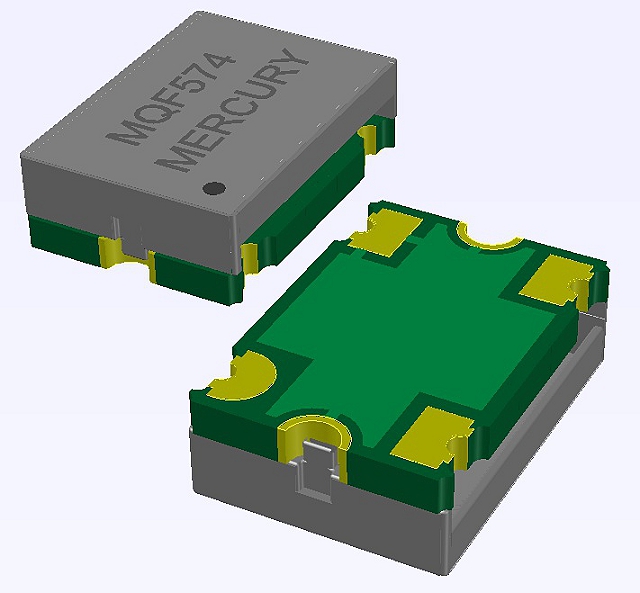

MQF574T25-10.58144-1.0/-40+85

MQF574T25-10.58144-1.0/-40+85

Part Number	MQF574T25-10.58144-1.0/-40+85
Manufacturer	Mercury United Electronics
Other Part Numbers	2425-MQF574T25-10.58144-1.0/-40+85-ND 2425-MQF574T25-10.58144-1.0/-40+85
Description	XTAL OSC TCXO 10.58144MHZ CMOS
Detailed Description	10.58144 MHz TCXO CMOS Oscillator 2.5V Enable/Disable 4-SMD, No Lead
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		Mercury United Electronics
Series		QuikXO
Packaging		Strip
Part Status		Active
Package / Case		4-SMD, No Lead
Size / Dimension		0.276" L x 0.197" W (7.00mm x 5.00mm)
Mounting Type		Surface Mount
Output		CMOS
Function		Enable/Disable
Type		TCXO
Operating Temperature		-40°C ~ 85°C
Frequency Stability		±1ppm
Voltage - Supply		2.5V
Current - Supply (Max)		27mA
Current - Supply (Disable) (Max)		18mA (Typ)
Height - Seated (Max)		0.098" (2.50mm)
Frequency		10.58144 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MQF574T25-10.58144-1.0/-40+85

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0060
Moisture Sensitivity Level (MSL)		2 (1 Year)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
