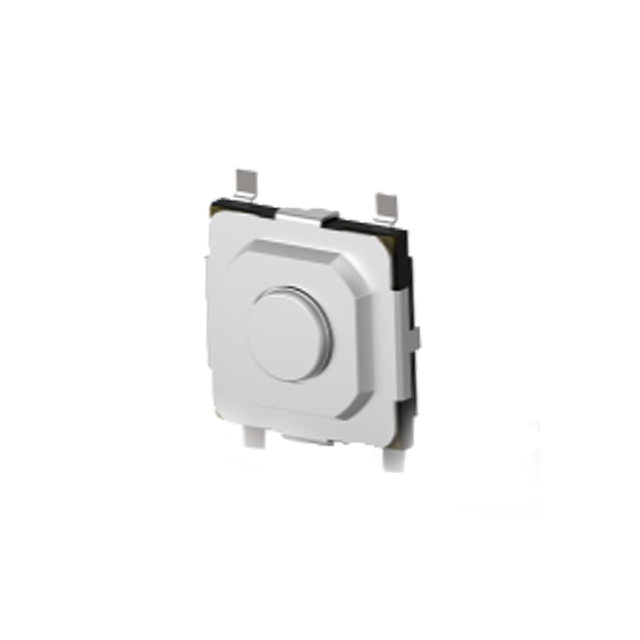

MSLPT5252CG2WTR

MSLPT5252CG2WTR

Part Number	MSLPT5252CG2WTR
Manufacturer	TE Connectivity ALCOSWITCH Switches
Other Part Numbers	450-3395-2-ND 450-3395-1-ND 450-3395-6-ND 450-3395-6 450-3395-2 450-3395-1 2337238-2
Description	SWITCH TACTILE SPST-NO 0.05A 12V
Detailed Description	Tactile Switch SPST-NO Top Actuated Surface Mount
Manufacturer Standard Lead Time	9 weeks
Datasheet	Datasheet

Product Attributes

Category		Switches Tactile Switches
Manufacturer		TE Connectivity ALCOSWITCH Switches
Series		LPT
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Mounting Type		Surface Mount
Circuit		SPST-NO
Switch Function		Off-Mom
Operating Temperature		-25°C ~ 70°C
Termination Style		Gull Wing
Illumination		Non-Illuminated
Contact Rating @ Voltage		0.05A @ 12VDC
Actuator Type		Standard
Operating Force		100gf
Outline		5.20mm x 5.20mm
Actuator Height off PCB, Vertical		2.00mm
Actuator Orientation		Top Actuated

Documents & Media

RESOURCE TYPE		LINK
Datasheets		MSLPT5252CG2WTR
Datasheets		MSLPT5252CG2WTR.pdf
Datasheets		MSLPT5252CGxxTR Prelim Drawing~

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9031
Moisture Sensitivity Level (MSL)		2A (4 Weeks)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 5306

Can ship immediately.

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Cut Tape (CT)	1	$0.44	$0.44
Total Amount: $0.44

Tape & Reel (TR)

QUANTITY	UNIT PRICE	EXT PRICE
3,000	$0.27	$810.00
6,000	$0.25	$1,500.00
15,000	$0.23	$3,450.00

Cut Tape (CT)

QUANTITY	UNIT PRICE	EXT PRICE
1	$0.44	$0.44
10	$0.42	$4.20
25	$0.40	$10.00
100	$0.34	$34.00
250	$0.31	$77.50
500	$0.29	$145.00
1,000	$0.26	$260.00
