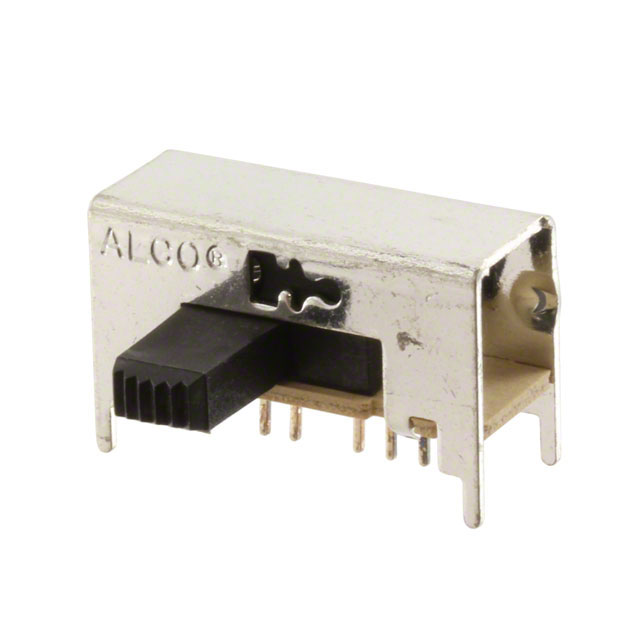

Part Number |
MSSA1450R
|
---|---|
Manufacturer | TE Connectivity ALCOSWITCH Switches |
Other Part Numbers |
450-1970-ND
3-1437580-9
-MSSA1450R-SI
450-1970
MSSA1450R-ND
|
Description | SWITCH SLIDE SP4T 300MA 125V |
Detailed Description | Slide Switch SP4T Through Hole, Right Angle |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | TE Connectivity ALCOSWITCH Switches | |
Series |
MSSA
|
|
Packaging |
Bulk
|
|
Part Status | Obsolete | |
Features | Epoxy Sealed Terminals | |
Contact Finish | Silver | |
Current Rating (Amps) | 300mA (AC) | |
Mounting Type | Through Hole, Right Angle | |
Circuit | SP4T | |
Switch Function | On-On-On-On | |
Operating Temperature | -20°C ~ 85°C | |
Termination Style | PC Pin | |
Actuator Length | 9.02mm | |
Actuator Type | Standard | |
Contact Material | Copper Alloy | |
Contact Timing | Shorting (MBB) | |
Voltage Rating - AC | 125 V |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | MSSA1450R | |
Datasheets | DK OBS NOTICE |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8536.50.9050 | |
Moisture Sensitivity Level (MSL) | Not Applicable | |
REACH Status | Vendor Undefined | |
RoHS Status | Not applicable |
