MTD20P06HDLT4 _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	MTD20P06HDLT4
Manufacturer	Sanyo Semiconductor/onsemi
Other Part Numbers	MTD20P06HDLT4OS-ND MTD20P06HDLT4OS
Description	MOSFET P-CH 60V 15A DPAK
Detailed Description	P-Channel 60 V 15A (Tc) 72W (Tc) Surface Mount DPAK
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Sanyo Semiconductor/onsemi
Series
Packaging		Tape & Reel (TR)
Part Status		Obsolete

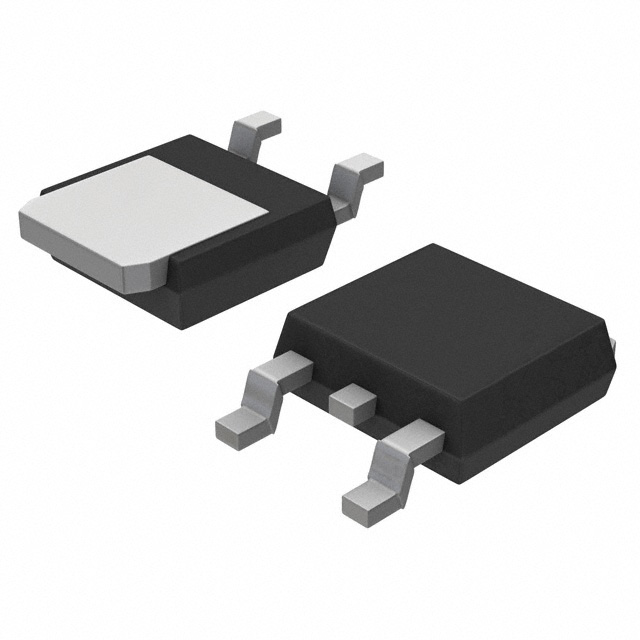

Package / Case		TO-252-3, DPAK (2 Leads + Tab), SC-63
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		P-Channel
Current - Continuous Drain (Id) @ 25°C		15A (Tc)
Rds On (Max) @ Id, Vgs		175mOhm @ 7.5A, 5V
Power Dissipation (Max)		72W (Tc)
Vgs(th) (Max) @ Id		2V @ 250µA
Supplier Device Package		DPAK
Drive Voltage (Max Rds On, Min Rds On)		5V
Vgs (Max)		±15V
Drain to Source Voltage (Vdss)		60 V
Gate Charge (Qg) (Max) @ Vgs		29 nC @ 5 V
Input Capacitance (Ciss) (Max) @ Vds		1190 pF @ 25 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant

This product is no longer manufactured.
