N112BPCX _ Audio Connectors_Barrel Connectors_Connectors, Interconnects

Part Number	N112BPCX
Manufacturer	Switchcraft / Conxall
Other Part Numbers	N112BPCX-ND
Description	CONN JACK STEREO 6.35MM PNL MNT
Detailed Description	6.35mm (0.250", 1/4") - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Barrel Connectors Audio Connectors
Manufacturer		Switchcraft / Conxall
Series		Hi-D® N11
Packaging		Bulk
Part Status		Active
Features		Mounting Hardware, Thread Lock
Voltage - Rated		48VDC
Connector Type		Phone Jack
Gender		Female
Mounting Type		Panel Mount, Through Hole
Shielding		Unshielded
Thread Size		3/8"-32
Operating Temperature		-20°C ~ 65°C
Panel Hole Size		0.375" (9.52mm)
Number of Positions/Contacts		3 Conductors, 3 Contacts
Internal Switch(s)		Does Not Contain Switch
Signal Lines		Stereo (3 Conductor, TRS)
Termination		Solder

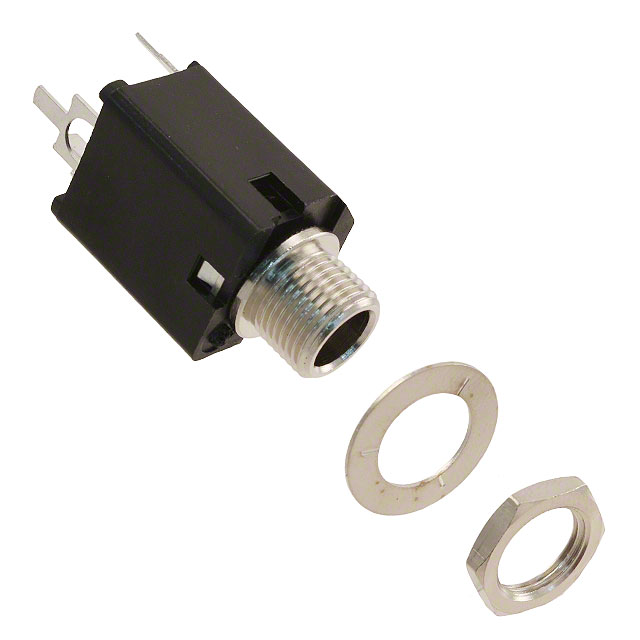

Includes		3 pcs - 1 Connector, 1 Nut, 1 Washer
Contact Material		Brass
Housing Material		Polyester, Glass Filled
Body Color		Black
Contact Material - Plating		Tin
Actual Diameter		0.250" (6.35mm)
Industry Recognized Mating Diameter		6.35mm (0.250", 1/4") - Headphone
Current Rating (Amps)		250 mA

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
